STV6412A

Features: I²C Bus ControlStandby Mode with Interrupt Signal OutputVideo Section 4 CVBS Inputs, 3 CVBS Outputs (one with Selectable Chroma Trap Filter) 3 Y/C Inputs, 2 Y/C Outputs 6 dB Gain on all CVBS/Y and C Outputs Integrated 150 W Buffers 1 Y/C Adder 2 RGB/FB Inputs, 1 Tri-state RGB/...

product image

STV6412A Picture
See larger image
SeekIC No. : 004509034 Detail

STV6412A: Features: I²C Bus ControlStandby Mode with Interrupt Signal OutputVideo Section 4 CVBS Inputs, 3 CVBS Outputs (one with Selectable Chroma Trap Filter) 3 Y/C Inputs, 2 Y/C Outputs 6 dB Gain o...

STV6412A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV6412A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 I²C Bus Control
 Standby Mode with Interrupt Signal Output
 Video Section
    4 CVBS Inputs, 3 CVBS Outputs (one with Selectable Chroma Trap Filter)
    3 Y/C Inputs, 2 Y/C Outputs
    6 dB Gain on all CVBS/Y and C Outputs
    Integrated 150 W Buffers
    1 Y/C Adder
    2 RGB/FB Inputs, 1 Tri-state RGB/FB Output with 6 dB Adjustable Gain (from +3dB to +9dB)
    Video Muting on all Outputs
    2 Slow Blanking Inputs/Outputs
    Sync Bottom Clamp on all CVBS/Yand RGB Inputs, Average Clamp on C Inputs
    Bandwidth: 15 MHz
    Crosstalk: 50 dB Minimum
 Audio Section
   4 Stereo Inputs, 3 Stereo Outputs
   1 Mono-Sound Output
   Stereo-to-Mono Sound Capability
   0/6/9 dB Selectable Gain on one Stereo Input
   Full Range Volume Control with Soft Control
   Audio Muting on all Outputs


Pinout

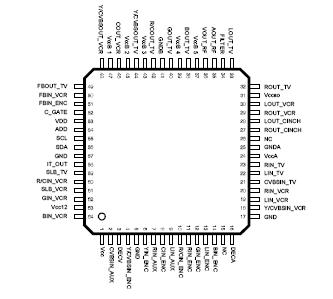

Connection Diagram


Specifications

Symbol Parameter Value Units
VCC12 Supply voltage for: - Slow blanking sections 13.2 V
VCCAO - Audio drivers 13.2 V
VCCA - Internal Digital Audio parts 10 V
VDD - Digital parts 6 V
Vcc, VCCBi - Video sections 6 V
VI Voltage at Pin I to GND: - Audio pins 0, VCCA V
- Video pins 0, VCC or VCCBi V
- Bus pins 0, 5.5 V
- Slow blanking pins 0, VCC12 V
VESD Maximum ESD voltage allowed. 100 pF capacitor discharged
through 1.5 kW serial resistor (Human Body Model)		 ±4 kV
Toper Operating Ambient Temperature 0, +70 °C
Tstg Storage Temperature -20, +150 °C



Description

The STV6412A is a highly integrated I²C bus-controlled audio and video switch matrix, optimized for use in digital set-top box applications. It provides
all the audio and video routings required in a full two SCART set-top box design.
