STV6432

Features: VIDEO SECTION` Y/C/CVBS Inputs` Y/C Outputs for TV` 4 CVBS Outputs (for TV, VCR, Aux and RF Modulator)` 6 dB Gain with Fine Adjustment` Integrated 150 Buffers` Sync Bottom Clamp on all CVBS/Y And Bias on C Inputs` Crosstalk: 50 dB (Typ.) ` Bandwidth: 15 MHz AUDIO SECTION` 1 pair of Ste...

product image

STV6432 Picture
See larger image
SeekIC No. : 004509036 Detail

STV6432: Features: VIDEO SECTION` Y/C/CVBS Inputs` Y/C Outputs for TV` 4 CVBS Outputs (for TV, VCR, Aux and RF Modulator)` 6 dB Gain with Fine Adjustment` Integrated 150 Buffers` Sync Bottom Clamp on all CV...

STV6432 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV6432
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 VIDEO SECTION
` Y/C/CVBS Inputs
` Y/C Outputs for TV
` 4 CVBS Outputs (for TV, VCR, Aux and RF Modulator)
` 6 dB Gain with Fine Adjustment
` Integrated 150 Buffers
` Sync Bottom Clamp on all CVBS/Y And Bias on C Inputs
` Crosstalk: 50 dB (Typ.)

` Bandwidth: 15 MHz
AUDIO SECTION
` 1 pair of Stereo Inputs
` 1 pair of Stereo Outputs (TV, VCR, AUX)
` Stereo-to-Mono Capability (RF Mod output)
` 6 dB Gain
` Crosstalk: 80 dB min.




Pinout

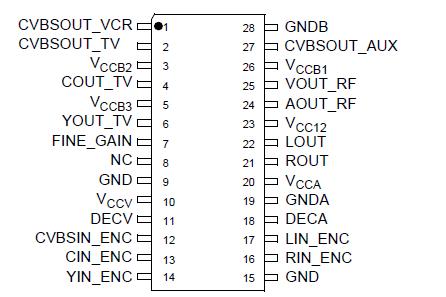

Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

VCC12

 Audio Section
13

V

VCCA

 Audio Section
10

V

VCCV,
VCCB
 Video Sections
6
V
VI
 Voltage at Pin 1 to GND
- Audio pins
- Video pins
0,VCCA or VCC12
0,VCCV or VCCB
V
VESD
 Maximum ESD voltage allowed. 100 pF capacitor discharged through
1.5 k serial resistor (Human Body Model)
±4
kV
Toper
 Operating Ambient Temperature
0, +70

Tstg

 Storage Temperature
0, +150




Description

The STV6432 is an audio/video output interface for US STB and DVD.

STV6432 adapts in amplitude and impedance the audio and video signals coming from the digital decoder to provide them to the TV set, VCR, Auxiliary and RF modulator.

The video gains are adjustable from 5 dB to 8 dB in steps of 1 dB.
