STV6433

Features: ·Y, C Inputs with 7.1 MHz filters·40 dB Stop Band Attenuation at 27 MHz· RF Signal with 14 dB Notch Filter at 4.5 MHz for Sound Trap·RF Signal with -170 ns Differential Group Delay between 400 kHz and 3.58 MHz·6 dB Gain·Capabilities of Integrated Output Buffers:Double-adapted Loads (75W)...

product image

STV6433 Picture
See larger image
SeekIC No. : 004509037 Detail

STV6433: Features: ·Y, C Inputs with 7.1 MHz filters·40 dB Stop Band Attenuation at 27 MHz· RF Signal with 14 dB Notch Filter at 4.5 MHz for Sound Trap·RF Signal with -170 ns Differential Group Delay between...

STV6433 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV6433
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Y, C Inputs with 7.1 MHz filters
· 40 dB Stop Band Attenuation at 27 MHz
· RF Signal with 14 dB Notch Filter at 4.5 MHz for Sound Trap
· RF Signal with -170 ns Differential Group Delay between 400 kHz and 3.58 MHz
· 6 dB Gain
· Capabilities of Integrated Output Buffers:Double-adapted Loads (75W) on CVBS Output, Single-adapted Loads on Y and C Outputs
· AC-coupled Inputs
· DC-coupled Outputs for Y, CVBS and RFOUT
· DC- or AC-coupled Output for COUT
· Bottom Clamp on Y, Bias Clamp on C
· Crosstalk: 55 dB (typical)


Pinout

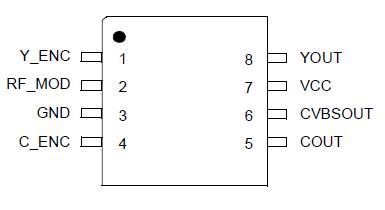

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Powering
6
V
Vi
 Voltage at Pin i to GND
-0.6,VCC
V
VESD
 Maximum ESD voltage allowed. 100 pF capacitor discharged through
1.5 k serial resistor (Human Body Model)
±4
k
TOPER
 Ambient Operating Temperature
0, +70
TSTG
 Storage Temperature
-55, +150



Description

The STV6433 is a filtered video output interface for DVD, Satellite and Cable Set-Top Box applications.

After removing D/A conversion noise using integrated low pass filters, the STV6433 adapts the Y and C signals coming from the digital decoder in amplitude and impedance for transmission to the TV set and an auxiliary device (VCR, DVD recorders, etc.) via adapted 75-ohm cables.

A Y+C adder with buffer for providing a CVBS signal to external loads and a pre-processing of a CVBS signal for RF modulator (RFOUT) are included in STV6433.

This pre-processing is a notch filtering at 4.5 MHz (before the addition of the audio signal in the RF modulator) and a 170 ns Y/C delay (to compensate the nominal distorsion in the TV IF filter).

The STV6433 is powered by a 5V voltage supply and is fully-compatible with STi55xx digital encoders.
