STV6434D

Features: · Y, C, CVBS Inputs with 7 MHz Filters· Y, Pr, Pb Inputs with 14 MHz Filters· 6 dB Gains· Capabilities of Integrated Output Buffers:Single Load (150W) for Y/Pr/Pb signals Double Load (75W) for Y, C and CVBS signals· DC Coupled Outputs for CVBS and YPrPb signals, DC or AC coupled output f...

product image

STV6434D Picture
See larger image
SeekIC No. : 004509038 Detail

STV6434D: Features: · Y, C, CVBS Inputs with 7 MHz Filters· Y, Pr, Pb Inputs with 14 MHz Filters· 6 dB Gains· Capabilities of Integrated Output Buffers:Single Load (150W) for Y/Pr/Pb signals Double Load (75W)...

STV6434D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV6434D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Y, C, CVBS Inputs with 7 MHz Filters
· Y, Pr, Pb Inputs with 14 MHz Filters
· 6 dB Gains
· Capabilities of Integrated Output Buffers:Single Load (150W) for Y/Pr/Pb signals Double Load (75W) for Y, C and CVBS signals
· DC Coupled Outputs for CVBS and YPrPb signals, DC or AC coupled output for Chroma signal
· Bottom Clamp on Y and CVBS, Bias Clamp on C, Sync Clamps on Pr and Pb
· Crosstalk: 55 dB (typ.)
· Separate Stand-by Modes on Y/C/CVBS and on Y/Pr/Pb signals
· Switchable Y+C Adder for Decoders without CVBS Outputs




Pinout

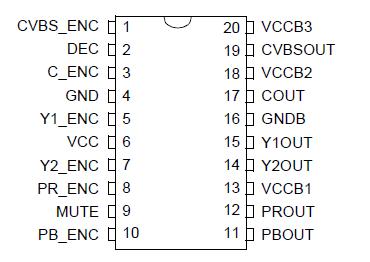

Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

VCC,VCCB

 Supply Voltage

6

V

V

 Voltage at all pins to Ground

-0.6 to VCC

V

VESD

 ESD Susceptibility Human Body Model: 100 pF discharged
through 1.5 kserial resistor

±4

kV




Description

The STV6434D is a filtered video output interface for STB and DVD applications.

After removing D/A conversion noises using integrated low pass filters, the STV6434D adapts in amplitude and impedance the video signals coming from the digital decoder for transmission, via 75W adapted cables, to the TV set, VCR and auxiliary devices.

The STV6434D is powered by a 5V supply.

The STV6434D is fully compatible with STi55xx Digital Decoders.

The STV6434D is mounted in a SO24 package (STV6434S) or in a DIP package (STV6434D).
