STV6435S

Features: ·Y, C, CVBS and RGB Inputs with 7 MHz Filters·6 dB Gains·Capabilities of Integrated Output Buffers:Single Load (150W) for RGB signals Double Load (75W) for Y, C and CVBS signals·DC Coupled Outputs for CVBS and RGB signals, DC or AC coupled output for Chroma signal·Bottom Clamp on RGB, Y ...

product image

STV6435S Picture
See larger image
SeekIC No. : 004509041 Detail

STV6435S: Features: ·Y, C, CVBS and RGB Inputs with 7 MHz Filters·6 dB Gains·Capabilities of Integrated Output Buffers:Single Load (150W) for RGB signals Double Load (75W) for Y, C and CVBS signals·DC Coupled...

STV6435S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV6435S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Y, C, CVBS and RGB Inputs with 7 MHz Filters
· 6 dB Gains
· Capabilities of Integrated Output Buffers:Single Load (150W) for RGB signals Double Load (75W) for Y, C and CVBS signals
· DC Coupled Outputs for CVBS and RGB signals, DC or AC coupled output for Chroma signal
· Bottom Clamp on RGB, Y and CVBS, Bias Clamp on C
· Crosstalk: 55 dB (typ.)
· Separate Stand-by Modes on Y/C/CVBS and on RGB signals
· Switchable Y+C Adder for Decoders without CVBS Outputs


Pinout

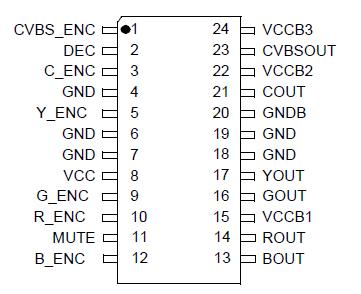

Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

VCC,VCCB

 Supply Voltage

6

V

V

 Voltage at all pins to Ground

-0.6 to VCC

V

VESD

 ESD Susceptibility Human Body Model: 100 pF discharged
through 1.5 kserial resistor

±4

kV




Description

The STV6435S is a filtered video output interface for STB and DVD applications.

After removing D/A conversion noises using integrated low pass filters, the STV6435S adapts in amplitude and impedance the video signals coming from the digital decoder for transmission, via 75W adapted cables, to the TV set, VCR and auxiliary devices.

The STV6435S is powered by a 5V supply.

The STV6435S is fully compatible with STi55xx Digital Decoders.

The STV6435S is mounted in a SO24 package (STV6435S) or in a DIP package (STV6435D).
