Features:

· Y, C, CVBS Inputs with 7 MHz Filters
· Y, Cr, Cb Inputs with 7 MHz Filters
· 6 dB Gains
· Capabilities of Integrated Output Buffers:Single Load (150W) for Y/Cr/Cb signals Double Load (75W) for Y, C and CVBS signals
· DC Coupled Outputs for CVBS and YCrCb signals, DC or AC coupled output for Chroma signal
· Bottom Clamp on Y and CVBS, Bias Clamp on C, Sync Clamps on Cr and Cb
· Crosstalk: 55 dB (typ.)
· Separate Stand-by Modes on Y/C/CVBS and on Y/Cr/Cb signals
· Switchable Y+C Adder for Decoders without CVBS Outputs


Pinout

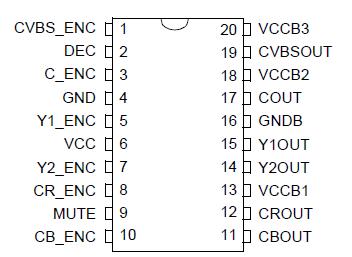

Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

VCC,VCCB

 Supply Voltage

6

V

V

 Voltage at all pins to Ground

-0.6 to VCC

V

VESD

 ESD Susceptibility Human Body Model: 100 pF discharged
through 1.5 kserial resistor

±4

kV




Description

The STV6436D is a filtered video output interface for STB and DVD applications.

After removing D/A conversion noises using integrated low pass filters, the STV6436D adapts in amplitude and impedance the video signals coming from the digital decoder for transmission, via 75 adapted cables, to the TV set, VCR and auxiliary devices.
The STV6436D is powered by a 5V supply.

The STV6436D is fully compatible with STi55xx Digital Decoders.

The STV6436D is mounted in a SO24 package (STV6436S) or in a DIP package (STV6436D).
