Part Number: STV6436S
Description: The STV6436 is a filtered video output interface for STB and DVD applications.
- Table of contents:
STV6436S
-
Suppliers
DataSheet
General Description
STV6436S General Description
The STV6436 is a filtered video output interface for STB and DVD applications.
After removing D/A conversion noises using integrated low pass filters, the STV6436 adapts in amplitude and impedance the video signals coming from the digital decoder for transmission, via 75 adapted cables, to the TV set, VCR and auxiliary devices.
The STV6436 is powered by a 5V supply.
The STV6436 is fully compatible with STi55xx Digital Decoders.
The STV6436 is mounted in a SO24 package (STV6436S) or in a DIP package (STV6436D).
STV6436S Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit | |
|
VCC,VCCB |
Supply Voltage |
6 |
V | |
|
V |
Voltage at all pins to Ground |
-0.6 to VCC |
V | |
|
VESD |
ESD Susceptibility | Human Body Model: 100 pF discharged through 1.5 kserial resistor |
±4 |
kV |
STV6436S Features
· Y, C, CVBS Inputs with 7 MHz Filters
· Y, Cr, Cb Inputs with 7 MHz Filters
· 6 dB Gains
· Capabilities of Integrated Output Buffers:Single Load (150W) for Y/Cr/Cb signals Double Load (75W) for Y, C and CVBS signals
· DC Coupled Outputs for CVBS and YCrCb signals, DC or AC coupled output for Chroma signal
· Bottom Clamp on Y and CVBS, Bias Clamp on C, Sync Clamps on Cr and Cb
· Crosstalk: 55 dB (typ.)
· Separate Stand-by Modes on Y/C/CVBS and on Y/Cr/Cb signals
· Switchable Y+C Adder for Decoders without CVBS Outputs
· Y, Cr, Cb Inputs with 7 MHz Filters
· 6 dB Gains
· Capabilities of Integrated Output Buffers:Single Load (150W) for Y/Cr/Cb signals Double Load (75W) for Y, C and CVBS signals
· DC Coupled Outputs for CVBS and YCrCb signals, DC or AC coupled output for Chroma signal
· Bottom Clamp on Y and CVBS, Bias Clamp on C, Sync Clamps on Cr and Cb
· Crosstalk: 55 dB (typ.)
· Separate Stand-by Modes on Y/C/CVBS and on Y/Cr/Cb signals
· Switchable Y+C Adder for Decoders without CVBS Outputs

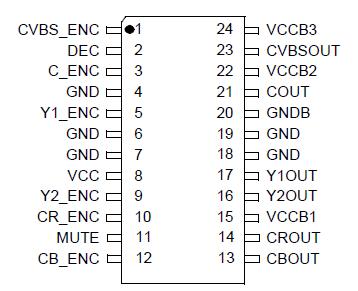

STV6436S Connection Diagram
STV6436S
PDF/DataSheet Download
- Datasheet: STV6436S
- File Size: 176339 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
