Description: The STV6618 is a highly integrated I²C buscontrolled video switch matrix, optimized for use in re...
- Table of contents:
STV6618
-
Suppliers
DataSheet
General Description
STV6618 General Description
The STV6618 is a highly integrated I²C buscontrolled video switch matrix, optimized for use in recordable Digital Video Disk applications or DVD players. It is adapted to video signals with 1H and 2H formats video routings. It provides required for connections to two external devices (Europe 2 SCARTs), internal tuners, digital encoders and recorders.
STV6618 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VDD |
Digital Section |
6 |
V |
|
VCCV |
Video Section |
6 |
V |
|
VI |
Voltage at Pin 1 to GND - Video pins - Bus pins, DIGOUT1,2,3 and C_GATE |
0, 5.5 0, 5.5 |
V |
|
VDIGOUT4-5-6 |
Voltage at pin DIGOUT4-5-6 |
0, 13 |
V |
|
VESD |
Maximum ESD Voltage allowed. 100 pF capacitor discharged through 1.5 k serial resistor (Human Body Model) |
±4 |
kV |
|
TOPER |
Operating Ambient Temperature |
0, +70 |
|
|
TSTG |
Storage Temperature |
-20, +150 |
STV6618 Features
` I²C Bus Control
` 5 Y/CVBS Inputs, 3 Y/CVBS Outputs
` 3 C Inputs, 1 C Output
` 2 RGB/YPrPb Inputs, 1 RGB/YPrPb Output
` 6 dB Gain on all 150 Buffer Outputs
` Integrated 150 Buffers
` Video Muting on all Outputs
` Bottom Clamp on all CVBS/Y, Average Clamp on C Inputs, Bottom Clamp on RGB,Sync-tip Clamp on PrPb signals
` Bandwidth: 17 MHz
` Crosstalk: 50 dB
` 5 Y/CVBS Inputs, 3 Y/CVBS Outputs
` 3 C Inputs, 1 C Output
` 2 RGB/YPrPb Inputs, 1 RGB/YPrPb Output
` 6 dB Gain on all 150 Buffer Outputs
` Integrated 150 Buffers
` Video Muting on all Outputs
` Bottom Clamp on all CVBS/Y, Average Clamp on C Inputs, Bottom Clamp on RGB,Sync-tip Clamp on PrPb signals
` Bandwidth: 17 MHz
` Crosstalk: 50 dB

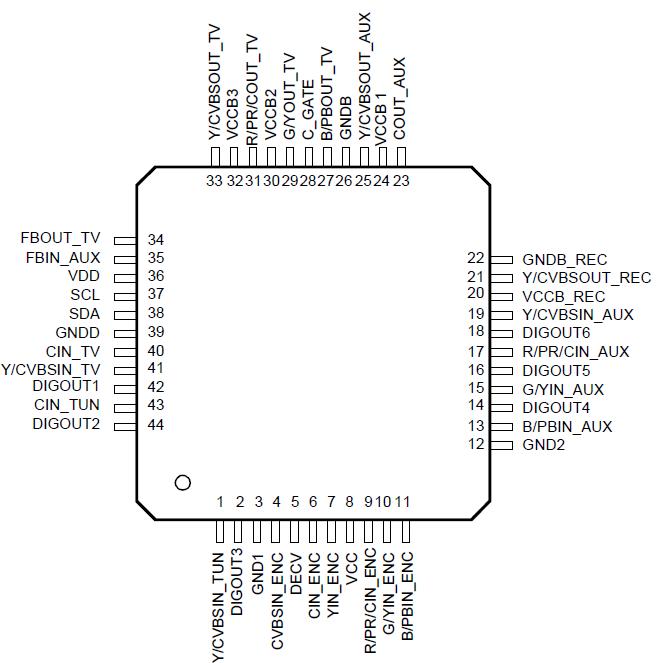

STV6618 Connection Diagram
STV6618
PDF/DataSheet Download
- Datasheet: STV6618
- File Size: 238255 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
