Purchase STV6688, In-stock STV6688 From SeekIC.
MFG:STMICROELECTRONICS D/C:O9+
Part Number: STV6688
MFG: STMICROELECTRONICS
D/C: O9+
Description: The STV6688 is a highly-integrated I²C buscontrolled video switch matrix, optimized for use in co...
- Table of contents:
STV6688
-
Suppliers
DataSheet
General Description
STV6688 General Description
The STV6688 is a highly-integrated I²C buscontrolled video switch matrix, optimized for use in color TV applications.
It is used to control the switching of 4 video signals.These signals can be in Single Component form (CVBS) or in Two Component form (Y/C). In both cases, the STV6688 microcontroller provides a CVBS signal for an external device (monitor).
STV6688 Features
` I²C Bus Control
` Standby Mode
` 4 Y/CVBS Inputs (one for internal TV signal)
` 4 C Inputs (one for internal TV signal)
` 1 Y/C Adder
` 1 Y/CVBS and 1 C Output, each with 0 dB gain
` 1 CVBS Output with 6 dB gain and 150 Buffer for Monitor
` SYNC Bottom Clamp on all CVBS/Y and Average Bias on C Inputs
` Bandwidth: 15 MHz
` Crosstalk: 50 dB (min.)
` Standby Mode
` 4 Y/CVBS Inputs (one for internal TV signal)
` 4 C Inputs (one for internal TV signal)
` 1 Y/C Adder
` 1 Y/CVBS and 1 C Output, each with 0 dB gain
` 1 CVBS Output with 6 dB gain and 150 Buffer for Monitor
` SYNC Bottom Clamp on all CVBS/Y and Average Bias on C Inputs
` Bandwidth: 15 MHz
` Crosstalk: 50 dB (min.)

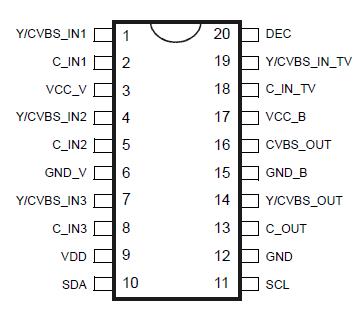

STV6688 Connection Diagram
STV6688
PDF/DataSheet Download
- Datasheet: STV6688
- File Size: 109045 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
