STV6886

General
· SYNC PROCESSOR (separate or composite)
· 12V SUPPLY VOLTAGE
· 8V REFERENCE VOLTAGE
· HOR. LOCK/UNLOCK OUTPUT
· HOR. & VERT. LOCK/UNLOCK INDICATION
· READ/WRITE I2C INTERFACE
· HORIZONTAL AND VERTICAL MOIRE
· B+ REGULATOR
  - Internal PWM generator for B+ current mode step-up converter
  - Switchable to step-down converter
  - I²C-adjustable B+ reference voltage
  - Output pulses synchronized on horizontal frequency
  - Internal maximum current limitation.

Horizontal
· Self-adaptative
· Dual PLL concept
· 80kHz maximum frequency
· X-ray protection input
· I²C controls: Horizontal duty-cycle, H-position,horizontal size amplitude

Vertical
· Vertical ramp generator
· 50 to 120 Hz agc loop
· Geometry tracking with VPOS & VAMP
· I²C controls:VAMP, VPOS, S-CORR, C-CORR
· Vertical breathing compensation

I²C Geometry Corrections
· Vertical parabola generator (Pin Cushion - E/W,Keystone, Corner Correction)
· Horizontal dynamic phase
  (Side Pin Balance & Parallelogram)
· Horizontal and vertical dynamic focus
  (Horizontal Focus Amplitude, Horizontal Focus Symmetry, Vertical Focus Amplitude)

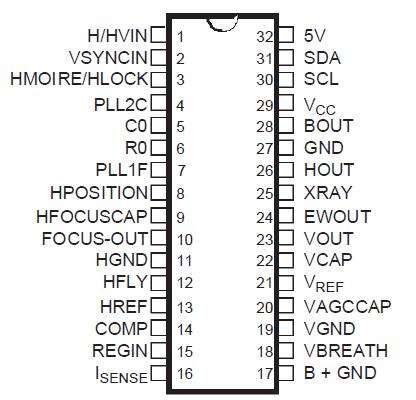

The STV6886 is a monolithic integrated circuit assembled in a 32-pin shrink dual-in-line plastic package. This IC STV6886 controls all the functions related to horizontal and vertical deflection in multimode or multi-frequency computer display monitors.

The internal sync processor, combined with the powerful geometry correction block, makes the STV6886 suitable for very high performance monitors,using few external components.

Combined with other ST components dedicated for CRT monitors (microcontroller, video preamplifier,video amplifier, OSD controller) the STV6886 allows fully I²C bus-controlled computer display monitors to be built with a reduced number of external components.
