Part Number: STV6889



MFG: STM

Package Cooled: DIP-32

D/C: 05+

Description: The STV6889 is a monolithic integrated circuit assembled in a 32-pin shrink dual-in-line plastic packa...


Urgent Purchase

STV6889 General Description


The STV6889 is a monolithic integrated circuit assembled in a 32-pin shrink dual-in-line plastic package. This IC controls all the functions related to horizontal and vertical deflection in multimode or multi-frequency computer display monitors.

Combined with other ST components dedicated for CRT monitors (microcontroller, video preamplifier,video amplifier, OSD controller), the STV6889 allows fully I2C bus-controlled computer display monitors to be built with a reduced number of external components.

STV6889 Maximum Ratings

Symbol
Parameter
Value
Unit
Min
Max
VCC
 Supply voltage (pin VCC)
-0.4
13.5
V
V(pin)
 Pins HEHTIn, VEHTIn, XRay, HOut, BOut
Pins H/HVSyn, VSyn, SCL, SDA
Pins HLckVBk, CO, RO, HPLL1F, HPosF, BRegIn,
BISense, VAGCCap, VCap, VDyCor, HOscF, VOscF
Pin HPLL2C
Pin HFly
-0.4
-0.4
-0.4

-0.4
-0.4

VCC
5.5
VRefo

VRefo/2
VRefo
V
V
V

V
V
Ilatch(pin)
 Latch-up current
All pins except XRay
Pin XRayv
-200
-100
200
200
mA
mA

VESD
 ESD susceptibility
(human body model: discharge of 100pF through 1.5k)
-2000
2000
V
Tstg
 Storage temperature
-40
150
Tj
 Junction temperature
150

STV6889 Features

General
• Advanced I2C-bus controlled deflection processor dedicated for high-end CRT monitors
• Single supply voltage 12V
• Very low jitter
• DC/DC converter controller
• Advanced EW drive
• Advanced asymmetry corrections
• Automatic multistandard synchronization
• Vertical dynamic correction waveform output
• X-ray protection and Soft-start & stop on horizontal and DC/DC drive outputs
• I2C-bus status register

Horizontal section
• 150 kHz maximum frequency
• Corrections of geometric asymmetry: Pin cushion asymmetry, Parallelogram, separate Top/Bottom corner asymmetry
• Tracking of asymmetry corrections with vertical size and position
• Fully integrated horizontal moiré cancellation

Vertical section
• 200 Hz maximum frequency
• Vertical ramp for DC-coupled output stage with adjustments of: C-correction, S-correction for super-flat CRT, Vertical size, Vertical position
• Vertical size and position prescales for factory adjustment
• Vertical moiré cancellation through vertical ramp waveform
• Compensation of vertical breathing with EHT variation; I2C-bus gain adjustment

EW section
• Symmetrical geometry corrections: Pin cushion,Keystone, Top/Bottom corners separately, Sand W-corrections
• Horizontal size adjustment
• Tracking of EW waveform with Vertical size and position, horizontal size and frequency
• Compensation of horizontal breathing with EHT variation, I2C-bus gain adjustment

Dynamic correction section
• Generates vertical waveform for dynamic corrections like focus, brightness uniformity, ...
• 1 output with vertical dynamic correction waveform, both polarities, tracking with vertical size and position

DC/DC controller section
• Step-up and step-down conversion modes
• External sawtooth configuration
• I2C-bus-controlled output voltage
• Synchronized on hor. frequency with phase selection
• Selectable polarity of drive signal
• Protection at H unlock condition

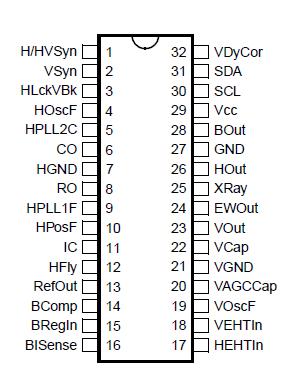

STV6889 Connection Diagram

STV6889 Connection Diagram
