STV8131

Low Dropout (LDO) Regulators 5V/8V Dual Positive

product image

STV8131 Picture
See larger image
SeekIC No. : 00528905 Detail

STV8131: Low Dropout (LDO) Regulators 5V/8V Dual Positive

STV8131 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV8131
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Input Voltage MAX : 20 V Output Voltage : 5 V, 8 V
Dropout Voltage (Max) : 1.4 V at 750 mA Output Current : 1 A, 1 A
Load Regulation : 160 mV Number of Outputs : 2
Output Type : Fixed Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole Package / Case : HEPTAWATT

Description

Output Type : Fixed
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Number of Outputs : 2
Input Voltage MAX : 20 V
Load Regulation : 160 mV
Output Current : 1 A, 1 A
Dropout Voltage (Max) : 1.4 V at 750 mA
Output Voltage : 5 V, 8 V
Package / Case : HEPTAWATT


Features:

· Output Currents up to 1A
· Fixed Precision Output 1 Voltage 5V ± 2%
· Fixed Precision Output 2 Voltage 8V ± 2%
· Output 1 with Disable by TTL Input
· Output 2 with Disable by TTL Input
· Short Circuit Protection at both Outputs
· Thermal Protection
·  Low Drop Output Voltage


Pinout

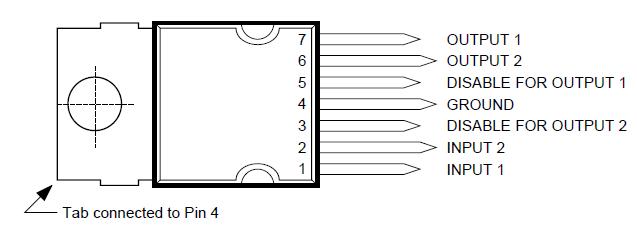

Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

VIN

 DC Input Voltage Pin 1
20

V

VDIS

 Disable Input Voltage Pin 3-5
20

V

IO1, 2
 Output Currents
Internally Limited
Pt
 Power Dissipation
Internally Limited
TSTG
 Storage Temperature
-65 to +150

TJ

 Junction Temperature
0 to +150




Description

The STV8131 is a monolithic dual positive voltage regulator designed to provide fixed precision output voltages of 5V and 8V at currents up to 1A.Each output can be disabled separately by a TTL input.

Short circuit and thermal protections are included.




Parameters:

Technical/Catalog InformationSTV8131
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Regulator TypeMultiple Output
Package / CaseHeptawatt-7 (Vertical, Bent and Staggered Leads)
PackagingTube
Regulator TopologyPositive Fixed
Current - Output1A
Voltage - Output5V, 8V
Operating Temperature0°C ~ 150°C
Voltage - Input7 ~ 14 V
Number of Regulators2
Current - Limit (Min)-
Current Short Circuit (Isc)-
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STV8131
STV8131
