STV8211

Features: · VERY LOWCURRENT ABSORPTION DATA · 3 STAGEIF GAIN CONTROLLED AMPLIFIER· SYNCHRONOUS VIDEO DEMODULATOR · WHITE SPOT AND NOISE INVERTER · AGC CIRCUIT WITH NOISE GATING · TUNER AGC OUTPUT FOR PNP TUNERS·FM DETECTOR · AF AMPLIFIER WITH DC VOLUME CONTROL·AFC · 2 VPP ONVIDEO OUTPUTPinoutSpeci...

product image

STV8211 Picture
See larger image
SeekIC No. : 004509074 Detail

STV8211: Features: · VERY LOWCURRENT ABSORPTION DATA · 3 STAGEIF GAIN CONTROLLED AMPLIFIER· SYNCHRONOUS VIDEO DEMODULATOR · WHITE SPOT AND NOISE INVERTER · AGC CIRCUIT WITH NOISE GATING · TUNER AGC OUTPUT FO...

STV8211 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV8211
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· VERY LOWCURRENT ABSORPTION DATA
· 3 STAGEIF GAIN CONTROLLED AMPLIFIER
· SYNCHRONOUS VIDEO DEMODULATOR
· WHITE SPOT AND NOISE INVERTER
· AGC CIRCUIT WITH NOISE GATING
· TUNER AGC OUTPUT FOR PNP TUNERS
· FM DETECTOR
· AF AMPLIFIER WITH DC VOLUME CONTROL
· AFC
· 2 VPP ONVIDEO OUTPUT


Pinout

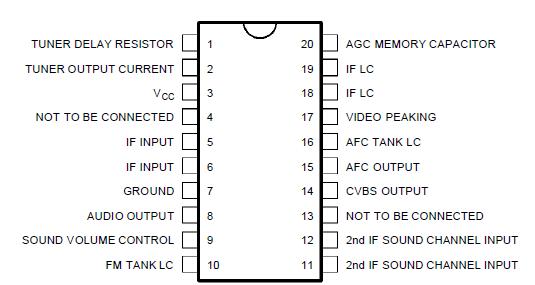

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VS
 Supply Voltage
13.5
V
VX
 Tuner AGC Voltage
Vs
V
P
 Power Dissipation at Tamb = 70
880
mW
Tstg
 Storage Temperature
- 40, + 150



Description

The STV8211 is a monolithic integrated circuit in DIP20 package for black & white television receivers usingPNP tuners. STV8211 is intended to operate with a negatively modulated vision carrier and frequency modulated sound carrier. Used with TEA2037A(H/V deflection circuit), this IC permits a complete low-cost solution for black and white applications.
