Product Details

Description



Features:

Power Amplifier
Flyback Generator
Stand-by Control
Output Current up to 3 App
Thermal Protection

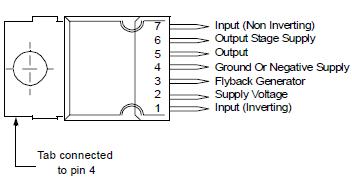

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
Voltage
VS
 Supply Voltage (pin 2) - Note 1 and Note 2
40
V
V5, V6
 Flyback Peak Voltage - Note 2
65
V
V3
 Voltage at Pin 3 - Note 2, Note 3 and Note 6
-0.4 to (VS + 3)
V
V1, V7
 Amplifier Input Voltage - Note 2, Note 6 and Note 7
- 0.4 to (VS + 2) or +40
V
Current
I0 (1)
 Output Peak Current at f = 50 to 200 Hz, t 10s - Note 4
±5
A
I0 (2)
 Output Peak Current non-repetitive - Note 5
±2
A
I3 Sink
 Sink Current, t<1ms - Note 3
2
A
I3 Source
 Source Current, t < 1ms
2
A
I3
 Flyback pulse current at f=50 to 200 Hz, t10s - Note 4
±5
A
ESD Susceptibility
ESD1
 Human body model (100 pF discharged through 1.5 k)
2
kV
ESD2
 EIAJ Standard (200 pF discharged through 0 )
300
V
Temperature
Ts
 Storage Temperature
-40 to 150
°C
Tj
 Junction Temperature
+150
°C



Description

The STV9326 is a vertical deflection booster designed for TV and monitor applications.

This STV9326, supplied with up to 30 V, provides up to 3 App output current to drive the vertical deflection yoke.

The internal flyback generator delivers flyback voltages up to 65 V.

In double-supply applications, a stand-by state will be reached by stopping the (+) supply alone.
