Description: Designed for monitors and TVs, the STV9380 is a class-D vertical deflection booster assembled in PDIP20 Package.

Urgent Purchase

STV9380 General Description


Designed for monitors and TVs, the STV9380 is a class-D vertical deflection booster assembled in PDIP20 Package.

It operates with supplies up to +/- 16V, provides up to 2.5 App output current to drive the yoke. Flyback voltage is close to 65V.

STV9380 Maximum Ratings

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage
±18
V
Tstg,Tj
 Storage and Junction Temperature
-40 to +150
°C
Top
 Operating Temperature Range
0 to +70
°C
VESD
 ESD Susceptibility - Human Body Model (100 pF discharge through
1.5 k)
±2
kV
Iout
 Output current
±1.6
A

STV9380 Features

· High Efficiency Power Amplifier
· No Heatsink
· Split Supply
· Flyback Generator
· Output Current up to 2.5 APP
· Flyback Voltage up to 65V
· Suitable for DC Coupling Application

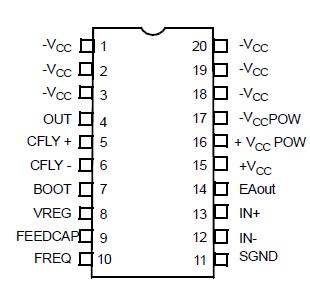

STV9380 Connection Diagram

STV9380 Connection Diagram

STV9380 datasheet

STV9380
PDF/DataSheet Download

  • Datasheet: STV9380
  • File Size: 50996 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
