Product Details

Description

Features:

· High-Efficiency Power Amplifier
· No Heatsink
· Split Supply
· Internal Flyback Generator
· Output Current up to 2.5 A_PP
· Suitable for DC Coupling Applications
· Few External Components
· Protection against Low V_CC

Pinout

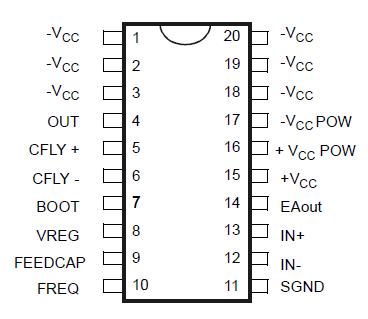

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage	±20	V
T_STG,T_J	Storage and Junction Temperature	-40 to +150
T_OP	Operating Temperature Range	-20 to +70
V_ESD	ESD Susceptibility - Human Body Model (100 pF discharge through 1.5 k)	±2	kV
I_OUT	Output current	±1.6	A
V_OUT	Maximum output voltage (pin 4) with respect to -V_CC (pins 1, 2, 3, 18, 19 and 20) and during flyback (see Note 1)	80	V

Description

Designed for TV and monitor applications, the STV9380A is a Class-D vertical deflection booster assembled in a 20-pin plastic DIP package.

STV9380A operates with supplies up to ±18 V and provides an output current up to 2.5 A_PP to drive the yoke.The internal flyback generator avoids the need for an extra power supply.
