Features:

· HIGH EFFICIENCY POWER AMPLIFIER
· NO HEATSINK
· SPLIT SUPPLY
· INTERNAL FLYBACK GENERATOR
· OUTPUT CURRENT UP TO 3 A_PP
· SUITABLE FOR DC COUPLING APPLICATION
· FEW EXTERNAL COMPONENTS
· PROTECTION AGAINST LOW V_cc

Pinout

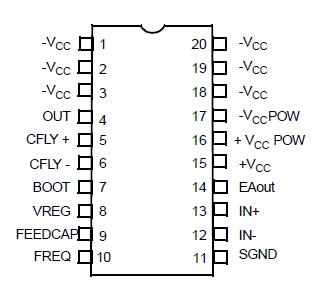

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage	±20	V
T_stg,T_j	Storage and Junction Temperature	-40 to +150	°C
T_op	Operating Temperature Range	0 to +70	°C
VESD	ESD Susceptibility - Human Body Model (100 pF discharge through 1.5 k)	±2	kV
I_out	Output current	±2	A
V_out	Maximum output voltage (pin 4) with respect to -V_CC (pins 1, 2, 3, 18, 19, 20) and during flyback (see Note 1)	80	V

Description

Designed for monitors and TVs, the STV9381 is a class-D vertical deflection booster assembled in PDIP20 Package.

STV9381 operates with supplies up to +/- 18V, provides up to 3 App output current to drive the yoke. The internal flyback generator avoids the need for an extra power supply.
