STV9410D

Features: · CMOS SINGLE CHIP CRT AND LCD DISPLAY PROCESSOR· BUILT IN 6 KBYTERAM· 25 ROWS OR MORE OF 40 CHARACTERS· CRT MODE : - ANALOG Y LUMINANCE OUTPUT OF 4-BIT DAC - R,G,B DIGITAL COLOR OUTPUTS - FAST BLANKING OUTPUT FOR VIDEO SWITCH COMMAND - SYNCHRONIZATION INPUT AND OUTPUT - MASTER AND SLAVE...

product image

STV9410D Picture
See larger image
SeekIC No. : 004509111 Detail

STV9410D: Features: · CMOS SINGLE CHIP CRT AND LCD DISPLAY PROCESSOR· BUILT IN 6 KBYTERAM· 25 ROWS OR MORE OF 40 CHARACTERS· CRT MODE : - ANALOG Y LUMINANCE OUTPUT OF 4-BIT DAC - R,G,B DIGITAL COLOR OUTPUTS -...

STV9410D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV9410D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· CMOS SINGLE CHIP CRT AND LCD DISPLAY PROCESSOR
· BUILT IN 6 KBYTERAM
· 25 ROWS OR MORE OF 40 CHARACTERS
· CRT MODE :
  - ANALOG Y LUMINANCE OUTPUT OF 4-BIT DAC
  - R,G,B DIGITAL COLOR OUTPUTS
  - FAST BLANKING OUTPUT FOR VIDEO SWITCH COMMAND
  - SYNCHRONIZATION INPUT AND OUTPUT
  - MASTER AND SLAVE SYNCHRONIZATION MODES
· LCD MODE :
  - 8 GREYLEVELS
  - 4 BIT DATA WITH CLOCK OUTPUT
  - 3 OUTPUTS FOR LCD DRIVERS SYNCHRONIZATION
  - CONTRAST ANALOG COMMAND WITH DAC OUTPUT
· 128 ALPHANUMERIC CODES AND 128 SEMI-GRAPHIC CODES IN INTERNAL ROM
· PARALLEL ATTRIBUTES THANKS TO 2 BYTE CODES
· 128 ALPHANUMERIC AND 96 SEMIGRAPHIC USER DEFINABLE CODES DOWN-LOADABLE IN RAM
· 3-WIRE ASYNCHRONOUS SERIAL MCU INTERFACE
· SQUARE WAVE OR LOGICAL PROGRAMMABLE OUTPUT
· FULLY PROGRAMMABLE WITH 7 16-BIT CONTROL REGISTERS
· 24-PIN SO OR 20-PIN DIP PACKAGES


Pinout

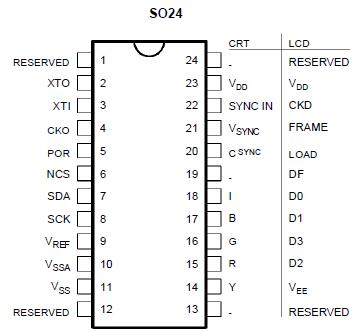

Connection Diagram




Specifications

Symbol
Parameter
Value
Unit
VDD*
 Supply Voltage
-0.3, +7.0
V
VIN*
 Input Voltage
-0.3, +7.0
V
Toper
 Operating Temperature
0, +70
Tstg
 Storage Temperature
-40, +125
Ptot
 Power Dissipation
300
mW



Description

STV9410D controller is a VLSI CMOS Display Processor.Time base generator, display control & refresh logic, interface for transparent MCU memory access, ROM character sets, memory to store display data & page codes and control registers are gathered on a single chip component packed in a short 20 DIP or SO plastic package.

Using its 3-wire serial interface, working in both read andwrite mode to program 7 control registers and to access internal RAM, STV9410D is a highly flexible processor.

The STV9410D provides the useran easy to useand cost effective solution to display alphanumericand semigraphic InformationonCRTand LCDscreens.
