Part Number: STV9410P
Description: STV9410 controller is a VLSI CMOS Display Processor.Time base generator, display control & refresh...
- Table of contents:
STV9410P
-
Suppliers
DataSheet
General Description
STV9410P General Description
STV9410 controller is a VLSI CMOS Display Processor.Time base generator, display control & refresh logic, interface for transparent MCU memory access, ROM character sets, memory to store display data & page codes and control registers are gathered on a single chip component packed in a short 20 DIP or SO plastic package.
Using its 3-wire serial interface, working in both read andwrite mode to program 7 control registers and to access internal RAM, STV9410 is a highly flexible processor.
The STV9410provides the useran easy to useand cost effective solution to display alphanumericand semigraphic InformationonCRTand LCDscreens.
STV9410P Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VDD* |
Supply Voltage |
-0.3, +7.0 |
V |
|
VIN* |
Input Voltage |
-0.3, +7.0 |
V |
|
Toper |
Operating Temperature |
0, +70 |
|
|
Tstg |
Storage Temperature |
-40, +125 |
|
|
Ptot |
Power Dissipation |
300 |
mW |
STV9410P Features
· CMOS SINGLE CHIP CRT AND LCD DISPLAY PROCESSOR
· BUILT IN 6 KBYTERAM
· 25 ROWS OR MORE OF 40 CHARACTERS
· CRT MODE :
- ANALOG Y LUMINANCE OUTPUT OF 4-BIT DAC
- R,G,B DIGITAL COLOR OUTPUTS
- FAST BLANKING OUTPUT FOR VIDEO SWITCH COMMAND
- SYNCHRONIZATION INPUT AND OUTPUT
- MASTER AND SLAVE SYNCHRONIZATION MODES
· LCD MODE :
- 8 GREYLEVELS
- 4 BIT DATA WITH CLOCK OUTPUT
- 3 OUTPUTS FOR LCD DRIVERS SYNCHRONIZATION
- CONTRAST ANALOG COMMAND WITH DAC OUTPUT
· 128 ALPHANUMERIC CODES AND 128 SEMI-GRAPHIC CODES IN INTERNAL ROM
· PARALLEL ATTRIBUTES THANKS TO 2 BYTE CODES
· 128 ALPHANUMERIC AND 96 SEMIGRAPHIC USER DEFINABLE CODES DOWN-LOADABLE IN RAM
· 3-WIRE ASYNCHRONOUS SERIAL MCU INTERFACE
· SQUARE WAVE OR LOGICAL PROGRAMMABLE OUTPUT
· FULLY PROGRAMMABLE WITH 7 16-BIT CONTROL REGISTERS
· 24-PIN SO OR 20-PIN DIP PACKAGES
· BUILT IN 6 KBYTERAM
· 25 ROWS OR MORE OF 40 CHARACTERS
· CRT MODE :
- ANALOG Y LUMINANCE OUTPUT OF 4-BIT DAC
- R,G,B DIGITAL COLOR OUTPUTS
- FAST BLANKING OUTPUT FOR VIDEO SWITCH COMMAND
- SYNCHRONIZATION INPUT AND OUTPUT
- MASTER AND SLAVE SYNCHRONIZATION MODES
· LCD MODE :
- 8 GREYLEVELS
- 4 BIT DATA WITH CLOCK OUTPUT
- 3 OUTPUTS FOR LCD DRIVERS SYNCHRONIZATION
- CONTRAST ANALOG COMMAND WITH DAC OUTPUT
· 128 ALPHANUMERIC CODES AND 128 SEMI-GRAPHIC CODES IN INTERNAL ROM
· PARALLEL ATTRIBUTES THANKS TO 2 BYTE CODES
· 128 ALPHANUMERIC AND 96 SEMIGRAPHIC USER DEFINABLE CODES DOWN-LOADABLE IN RAM
· 3-WIRE ASYNCHRONOUS SERIAL MCU INTERFACE
· SQUARE WAVE OR LOGICAL PROGRAMMABLE OUTPUT
· FULLY PROGRAMMABLE WITH 7 16-BIT CONTROL REGISTERS
· 24-PIN SO OR 20-PIN DIP PACKAGES

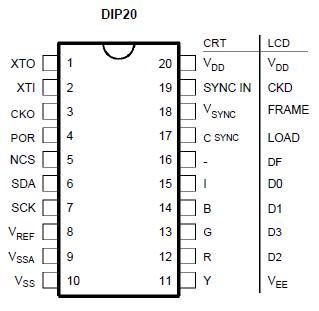

STV9410P Connection Diagram
STV9410P
