Purchase STV9422, In-stock STV9422 From SeekIC.
MFG:ST Package Cooled:DIP
Part Number: STV9422
MFG: ST
Package Cooled: DIP
Description: The STV9422/24 is an ONSCREEN DISPLAY for monitor. It is built as a slave peripheral connected to a ho...
- Table of contents:
STV9422
-
Suppliers
DataSheet
General Description
STV9422 General Description
The STV9422/24 is an ONSCREEN DISPLAY for monitor. It is built as a slave peripheral connected to a host MCU via a serial I2C bus. It includes a display memory, controls all the display attributes and generates pixels from the data read in its on chip memory. The line PLL and a special slice interpolator allow to have a display aspect which does not dependon theline and framefrequencies.I2C interface allows MCU to make transparent internal access to prepare the next pages during the display of the current page. Toggle from one page to another by programming only one register.
8 x 8 bits PWM DAC are available to provide DC voltage control to other peripherals.
The STV9422/24provides the user an easy to use and cost effective solution to display alphanumeric or graphic information on monitor screen.
STV9422 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VDD |
Supply Voltage |
-0.3, +7.0 |
V |
|
VIN |
Input Voltage |
-0.3, +7.0 |
V |
|
Toper |
Operating Ambient Temperature |
0, +70 |
|
|
Tstg |
Storage Temperature |
-40, +125 |
STV9422 Features
` CMOS SINGLE CHIP OSD FOR MONITOR
` BUILT IN 1 KBYTE RAM HOLDING:
- PAGES'DESCRIPTORS
- CHARACTER CODES
- USERDEFINABLE CHARACTERS
` 128 ALPHANUMERIC CHARACTERS OR GRAPHIC SYMBOLS IN INTERNAL ROM (12 x 18 DOT MATRIX)
` UP TO 26 USER DEFINABLE CHARACTERS
` INTERNAL HORIZONTAL PLL (15 TO120kHz)
` PROGRAMMABLE VERTICAL HEIGHT OF CHARACTER WITH A SLICE INTERPOLATOR TO MEET MULTI-SYNCH REQUIREMENTS
` PROGRAMMABLE VERTICAL AND HORI ZONTAL POSITIONING
` FLEXIBLESCREEN DESCRIPTION
` CHARACTER BY CHARACTER COLOR SELECTION (UP TO 8 DIFFERENT COLORS)
` PROGRAMMABLE BACKGROUND (COLOR,TRANSPARENT OR WITH SHADOWING)
` CHARACTER BLINKING
` 2-WIRES ASYNCHRONOUS SERIAL MCU INTERFACE (I2C PROTOCOL)
` 8 x 8 BITS PWM DAC OUTPUTS
` SINGLE POSITIVE5V SUPPLY
` BUILT IN 1 KBYTE RAM HOLDING:
- PAGES'DESCRIPTORS
- CHARACTER CODES
- USERDEFINABLE CHARACTERS
` 128 ALPHANUMERIC CHARACTERS OR GRAPHIC SYMBOLS IN INTERNAL ROM (12 x 18 DOT MATRIX)
` UP TO 26 USER DEFINABLE CHARACTERS
` INTERNAL HORIZONTAL PLL (15 TO120kHz)
` PROGRAMMABLE VERTICAL HEIGHT OF CHARACTER WITH A SLICE INTERPOLATOR TO MEET MULTI-SYNCH REQUIREMENTS
` PROGRAMMABLE VERTICAL AND HORI ZONTAL POSITIONING
` FLEXIBLESCREEN DESCRIPTION
` CHARACTER BY CHARACTER COLOR SELECTION (UP TO 8 DIFFERENT COLORS)
` PROGRAMMABLE BACKGROUND (COLOR,TRANSPARENT OR WITH SHADOWING)
` CHARACTER BLINKING
` 2-WIRES ASYNCHRONOUS SERIAL MCU INTERFACE (I2C PROTOCOL)
` 8 x 8 BITS PWM DAC OUTPUTS
` SINGLE POSITIVE5V SUPPLY

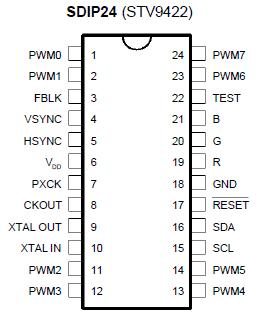

STV9422 Connection Diagram
STV9422
PDF/DataSheet Download
- Datasheet: STV9422
- File Size: 227922 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
