STV9432

Features: • 100MHz MAX. PIXEL CLOCK, AVAILABLE FOR ANY LINE FREQUENCY BETWEEN 15 AND 140 kHz• 12 x 18 CHARACTER ROM FONT INCLUDES: - 240 MONOCOLOR CHARACTERS - 16 MULTICOLOR CHARACTERS• CHARACTER FLASHING• UP TO 1K CHARACTERS TEXT DISPLAY• ULTRA HIGH FREQUENCY PLL FOR...

product image

STV9432 Picture
See larger image
SeekIC No. : 004509123 Detail

STV9432: Features: • 100MHz MAX. PIXEL CLOCK, AVAILABLE FOR ANY LINE FREQUENCY BETWEEN 15 AND 140 kHz• 12 x 18 CHARACTER ROM FONT INCLUDES: - 240 MONOCOLOR CHARACTERS - 16 MULTICOLOR CHARACTERS&#...

STV9432 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV9432
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 100MHz MAX. PIXEL CLOCK, AVAILABLE FOR ANY LINE FREQUENCY BETWEEN 15 AND 140 kHz
• 12 x 18 CHARACTER ROM FONT INCLUDES:
  - 240 MONOCOLOR CHARACTERS
  - 16 MULTICOLOR CHARACTERS
• CHARACTER FLASHING
• UP TO 1K CHARACTERS TEXT DISPLAY
• ULTRA HIGH FREQUENCY PLL FOR JITTERFREE DISPLAY
• FLEXIBLE DISPLAY:
  - ANY CHARACTER WIDTH AND HEIGHT
  - ANYWHERE IN THE SCREEN
• SINGLE BYTE CHARACTER CODES AND COLOR LOOK-UP TABLE FOR EASY PROGRAMMING AND FAST ACCESS
• CHARACTER FLIP OPERATIONS
• WIDE DISPLAY WINDOW ALLOWS PATTERN GENERATION FOR FACTORY ADJUSTMENTS
• I2C BUS MCU INTERFACE

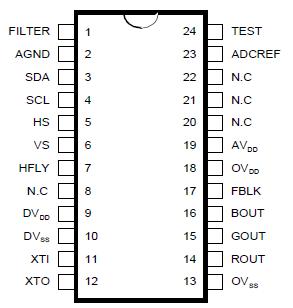

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
AVDD,DVDD,OVDD
 Supply Voltage
-0.3, +6.0
V
VIN
 Input Voltage
Vss-0.3,VDD + 0.3
V
Toper
 Operating Temperature
0, +70
Tstg
 Storage Temperature
-40, +125



Description

Connected to a host MCU via a serial I2C Bus, the STV9432TA is a multifunction slave peripheral device integrating the ON-Screen-Display block.

The On-screen Display (OSD) STV9432 includes a MASK PROGRAMMABLE ROM that holds the CUSTOM CHARACTER FONT, a 1Kbytes RAM that stores the code strings of the different lines of text to be displayed, and a set of registers to program character sizes and colors. A built-in digital PLL, operating at very high frequency, provides an accurate display without visible jitter for a wide line frequency range from 15 to 140 kHz.
