STV9555

Features: · Triple-channel video amplifier· Supply voltage up to 115 V· 80V Output dynamic range· Perfect for PICTURE BOOST application requiring high video amplitude· Pinning for easy PCB layout· Supports DC coupling (optimum cost saving) and AC coupling applications.· Built-in Voltage Gain: 20 (...

product image

STV9555 Picture
See larger image
SeekIC No. : 004509127 Detail

STV9555: Features: · Triple-channel video amplifier· Supply voltage up to 115 V· 80V Output dynamic range· Perfect for PICTURE BOOST application requiring high video amplitude· Pinning for easy PCB layout· S...

STV9555 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV9555
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Triple-channel video amplifier
· Supply voltage up to 115 V
· 80V Output dynamic range
· Perfect for PICTURE BOOST application requiring high video amplitude
· Pinning for easy PCB layout
· Supports DC coupling (optimum cost saving) and AC coupling applications.
· Built-in Voltage Gain: 20 (Typ.)
· Rise and Fall Times: 9.5 ns (Typ.)
· Bandwidth: 37 MHz (Typ.)
· Very low stand-by power consumption
· Perfectly matched with the STV921x preamplifiers


Pinout

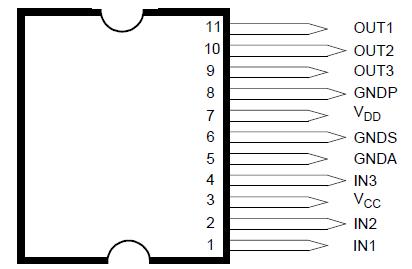

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VDD

High supply voltage
120
V
VCC
 Low supply voltage
16.5
V
VESD
 ESD susceptibility
Human Body Model (100pF discharged through 1.5K)
EIAJ norm (200pF discharged through 0)

2
300

kV
V
IOD
 Output source current (pulsed < 50s)
80
mA
IOG
 Output sink current (pulsed < 50s)
80
mA
VIN MAX
Maximum Input Voltage
VCC + 0.3
V
VIN MAX
Minimum Input Voltage
- 0.5
V
TJ
 Junction Temperature
150
°C
TSTG
 Storage Temperature
-20 + 150
°C



Description

The STV9555 is a triple-channel video amplifier designed in a 120V-high voltage technology and able to drive in DC-coupling mode the 3 cathodes of a CRT monitor.

The STV9555 supports PICTURE BOOST applications where video amplitude up to 50V orabove is required, ensuring a maximum quality of the still pictures or moving video.

Perfecly matched with the STV921x ST preamplifiers, it provides a highly performant and very cost effective video system.
