STi5500

Features: .ENHANCED 32-BIT VL-RISC CPU- FAST INTEGER/BIT OPERATION AND. VERY HIGH CODE DENSITY HIGH PERFORMANCE MEMORY/CACHE SUBSYSTEM- 2KBYTES INSTRUCTION CACHE, 2KBYTES SRAM, 2KBYTES DATA CACHE/SRAM.- 160MBYTES/S BANDWIDTH COMBINED VIDEO AND AUDIO DECODER CORE- VIDEO DECODER FULLY SUPPORTS MPEG-...

product image

STi5500 Picture
See larger image
SeekIC No. : 004507724 Detail

STi5500: Features: .ENHANCED 32-BIT VL-RISC CPU- FAST INTEGER/BIT OPERATION AND. VERY HIGH CODE DENSITY HIGH PERFORMANCE MEMORY/CACHE SUBSYSTEM- 2KBYTES INSTRUCTION CACHE, 2KBYTES SRAM, 2KBYTES DATA CACHE/SR...

STi5500 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STi5500
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

.ENHANCED 32-BIT VL-RISC CPU
- FAST INTEGER/BIT OPERATION AND
. VERY HIGH CODE DENSITY HIGH PERFORMANCE MEMORY/CACHE SUBSYSTEM
- 2KBYTES INSTRUCTION CACHE, 2KBYTES
  SRAM, 2KBYTES DATA CACHE/SRAM
.- 160MBYTES/S BANDWIDTH COMBINED VIDEO AND AUDIO DECODER CORE
- VIDEO DECODER FULLY SUPPORTS MPEG-2 MP@ML
- MEMORY REDUCTION - PAL MP@ML IN 12MBITS
- 2 TO 8 BIT PER PIXEL OSD OPTIONS
- LETTERBOX (16:9) DISPLAY FORMAT
- HORIZONTAL AND VERTICAL RESIZING FUNCTIONS
- AUDIO DECODER SUPPORTS LAYERS
  1 AND 2 OF MPEG, INTERFACE TO
. EXTERNAL DOLBY AC-3ä DECODER PAL/NTSC ENCODER
- MACROVISIONä VERSION 7.01/6.1 COMPATIBLE
- TELETEXT, AND CLOSED CAPTION
- SIMULTANEOUS OUTPUT OF RGB, CVBS
. AND COMPONENT VIDEO HIGH PERFORMANCE SDRAM MEMORY INTERFACE
- SUPPORTS 1 OR 2 16MBIT 100MHz SDRAMS
- ACCESSIBLE BY MPEG DECODER, CPU AND DMAS
- HIGH BANDWIDTH ACCESS FROM CPU
  ALLOWS HIGH PERFORMANCE OSD
. OPERATIONS PROGRAMMABLE MEMORY INTERFACE
- 4 BANKS EACH 8/16 BITS WIDE
- SUPPORT FOR MIXED MEMORY,
. PERIPHERALS, DRAM AND POWER PC LINK INTERFACE
- SERIAL INPUT
- SUPPORTS DSS, DVB, AND DVD BITSTREAMS
- 32 PIDS SUPPORTED
- DES AND DVB DESCRAMBLERS
.- 32 SI/PSI FILTERS OF 16 BYTES VECTORED INTERRUPTS - 8 PRIORITIZED
.LEVELS DMA ENGINES/INTERFACES
- 2 UARTS, 1 I2C CONTROLLER, 3 PWM
  OUTPUTS, 3 TIMERS, 3 CAPTURE TIMERS
- 24 BITS OF PIO SHARED WITH SERIAL INTERFACES
- OS LINK INTERFACE
- BLOCK MOVE DMA, 2 MPEG DMAS
.- TELETEXT INTERFACE PROFESSIONAL TOOLSET SUPPORT
- ANSI C COMPILER AND LIBRARIES
.- INQUEST ADVANCED DEBUGGING TOOLS NON-INTRUSIVE DEBUG CONTROLLER
- HARDWARE BREAKPOINTS
.- REAL TIME TRACE 208 PIN PQFP PACKAGE


Pinout

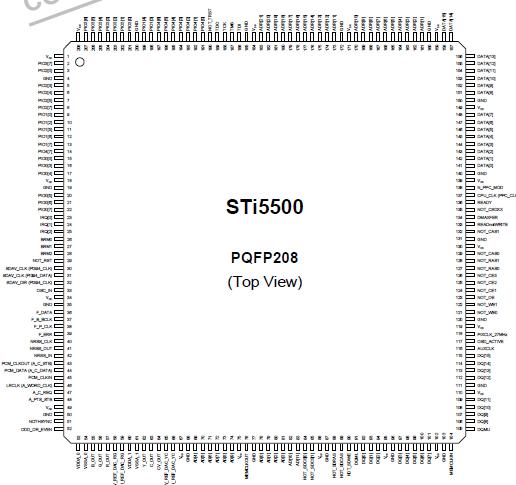

Connection Diagram


Description

The STi5500 is the first of a new generation of integrated multimedia decoder engines for set top box and DVD applications. It offers a high level of integration by reducing the complete set top box decoding chain from Transport Demux to PAL/NTSC Encoder onto one chip. At the same time it dramatically enhances CPU and Graphics performance, and cuts down total system memory cost.
