SUD494J

Features: • Ultra high speed• Fast reverse recovery time : trr=1.6ns(Typ.)• Small total capacitance : CT=2.2pF(Typ.)• Three SDS914 chips in SOT-363 packagePinoutSpecifications Characteristic Symbol Ratings Unit Maximum(peak) reverse voltage VRM 85 V Reverse...

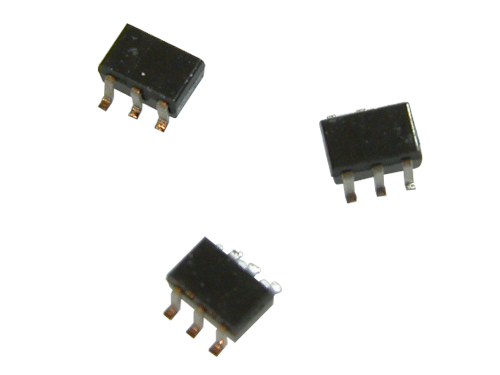

product image

SUD494J Picture
See larger image
SeekIC No. : 004509217 Detail

SUD494J: Features: • Ultra high speed• Fast reverse recovery time : trr=1.6ns(Typ.)• Small total capacitance : CT=2.2pF(Typ.)• Three SDS914 chips in SOT-363 packagePinoutSpecification...

SUD494J Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SUD494J
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Ultra high speed
• Fast reverse recovery time : trr=1.6ns(Typ.)
• Small total capacitance : CT=2.2pF(Typ.)
• Three SDS914 chips in SOT-363 package




Pinout



Connection Diagram




Specifications

Characteristic Symbol Ratings Unit
Maximum(peak) reverse voltage VRM 85 V
Reverse voltage VR 80 V
Maximum(peak) forward current IFM 300 mA
Average forward current

IO

100

mA

Surge current(10ms)

IFSM

2

A

Power dissipation PD 150 mW
Junction temperature

Tj

150

Storage temperature

Tstg

-55~150






Description

SUD494J Ultra high speed switching application
SUD494J meets the requirements for low leakage current, low switching time, high variation for permitted current and small packages. more elements per package. This Diode are used in all kinds of applications SUD494J e.g. Safety, Cellular phones, TV chassis, Camcorder etc.
