SW-259

Features: Very Low Power Consumption: 50 µW Low Insertion Loss: 1.0 dB High Isolation: 35 dB up to 2 GHz Very High Intercept Point: 46 dBm IP 3 Nanosecond Switching Speed Temperature Range: -40°C to + 85°C Tape and Reel Packaging Available 1PinoutSpecifications Parameter Absolute ...

product image

SW-259 Picture
See larger image
SeekIC No. : 004509614 Detail

SW-259: Features: Very Low Power Consumption: 50 µW Low Insertion Loss: 1.0 dB High Isolation: 35 dB up to 2 GHz Very High Intercept Point: 46 dBm IP 3 Nanosecond Switching Speed Temperature Range: -...

SW-259 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SW-259
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Very Low Power Consumption: 50 µW
Low Insertion Loss: 1.0 dB
High Isolation: 35 dB up to 2 GHz
Very High Intercept Point: 46 dBm IP 3
 Nanosecond Switching Speed
Temperature Range: -40°C to + 85°C
Tape and Reel Packaging Available 1

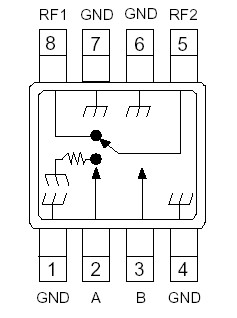

Pinout

Connection Diagram


Specifications

Parameter
Absolute Maximum1,2

Max. Input Power
0.05 GHz
0.5 2 GHz
Control Voltage
Storage Temperature

+27 dBm
+34 dBm
+5V, -8.5V
-65°C to 150°C

1. Operation of this device above any one of these parameters may cause permanent damage
2. When the RF Input power is applied to a terminated port, the absolute maximum is +32 dBm.


Description

M/A-COM's SW-259 is a GaAs MMIC SPST terminated switch in a low cost SOIC 8-lead surface mount plastic package. The SW-259 is ideally suited for use where very low power consumption is required. Typical applications include transmit/ receive switching, switch matrices, and filter banks in systems such as: radio and cellular equipment, PCM, GPS, fiber optic modules, and other battery powered radio equipment.

The SW-259 is fabricated with a monolithic GaAs MMIC using a mature 1-micron process. The process features full chip passivation for increased performance and reliability.
