Product Details

Description



Features:

 Low Cost Plastic SC-70 (SOT-363) Package
 Low Insertion Loss < 0.3 dB @ 900 MHz
 Low Power Consumption < 15 mA @ +2.3 Volts
 Positive or Negative 2.3 to 8 Volt Control

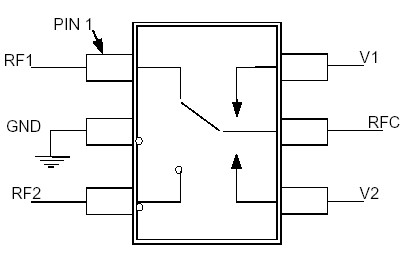

Pinout

Connection Diagram


Specifications

Parameter
Absolute Maximum1

Max. Input Power (0.5 - 3.0 GHz)
3 V Control
5 V Control
Operating Voltage
Operating Temperature
Storage Temperature
+30 dBm
+33 dBm
+8.5 Volts
-40°C to +85°C
-65°C to +150°C

1. Exceeding any one or combination of these limits may cause permanent damage.


Description

M/A-COM's SW-456 is a GaAs monolithic switch in a low cost SC-70 (SOT-363) surface mount plastic package. The SW-456 is ideally suited for applications where very low power consumption, low insertion loss, very small size and low cost are required. Typical application is in dual band systems where switching between small signal components is required such as filter banks, single-band LNA's, converters, etc. The SW-456 can be used in applications up to 0.25 watts in systems such as cellular, PCS, DCS1800, GSM, CDMA, W-CDMA and other analog/digital wireless communication systems.

The SW-456 is fabricated using a mature 0.8 micron GaAs MESFET process. The process features full passivation for performance and reliability.
