SY100EP57V

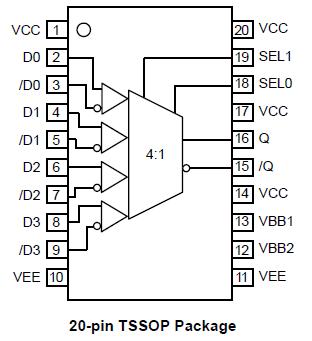

The SY100EP57V is a high-speed, low-skew, fully differential PECL/ECL 4:1 multiplexer in a 20-pin TSSOP package. This device is a pin-for-pin, plug-in replacement to the MC10/100EP57DT. The signal-path inputs (D0:D3) accept differential signals as low as 150mVpk-pk. All I/O pins are 100K EP PECL/ECL logic compatible.

ACperformance is guaranteed over the industrial 40°C to +85°C temperature range and 3.0V to 5.5V supply voltage range. The SY100EP57V  will operate in PECL/LVPECL or ECL/ LVECL mode. The SY100EP57 propagation delay is less than 520ps, and the Select-to-valid output delay is less than 575ps over temperature and voltage. For clock applications, the high-speed design combined with an extremely fast rise/fall time of less than 220ps produces a toggle frequency as high as 3GHz (400mVpk-pk swing). Two VBB output reference pins (approx equal to VCC1.4V) are available for ACcoupled or single-ended applications.

The SY100EP57V is part of Micrel's high-speed, Precision Edge timing and distribution family. For applications that require a different I/O combination, consult the Micrel website at www.seekic.com, and choose from a comprehensive product line of high-speed, low skew fanout buffers, translators, and clock dividers.
