Features:

· 3.3V power supply
· 1.9ns typical propagation delay
· Maximum frequency > 275MHz
· Differential LVPECL inputs
· 24mA LVTTL outputs
· Flow-through pinouts
· Internal input resistors: pulldown on D, pulldown and pullup on /D
· Q output will default LOW with inputs open or at Ground
· Available in 8-pin MSOP and SOIC packages


Pinout

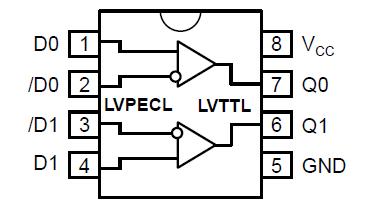

Connection Diagram


Specifications

Symbol
Paramter
Value
Unit
VCC
 Power Supply Voltage
0.5 to +3.8
V
VI
 PECL Input Voltage
0V to VCC+0.5
V
VO
 Voltage Applied to
Output at HIGH State
0.5 to VCC
V
IO
 Current Applied to
Output at LOW State
Twice the Rated IOL
mA
Tstore
 Storage Temperature
65 to +150
TA
 Operating Temperature
40 to +85



Description

The SY100EPT23L is a dual differential LVPECL-to- LVTTL translator. Because LVPECL (Low Voltage Positive ECL) levels are used, only +3.3V and ground are required. The tiny 8-pin MSOP and dual-gate design of the EPT23L makes SY100EPT23L ideal for applications which require the translation of a clock and data signal.

The SY100EPT23L is available in only the ECL 100K standard. Since there are no LVPECL outputs or an external VBB reference, the EPT23L does not require both ECL standard versions. The inputs can accept 10K voltage levels and any standard differential LVPECL input referenced from a VCC of +3.3V
