SY100H600

Features:

9-bit ideal for byte-parity applications
Flow-through configuration
Extra TTL and ECL power/ground pins to minimize switching noise
ECL and TTL enable inputs
Dual supply
3.5ns max. D to Q
PNP TTL inputs for low loading
Choice of ECL compatibility:  MECL 10KH (10Hxxx) or 100K (100Hxxx)
Fully compatible with Motorola MC10H/100H600
Available in 28-pin PLCC package

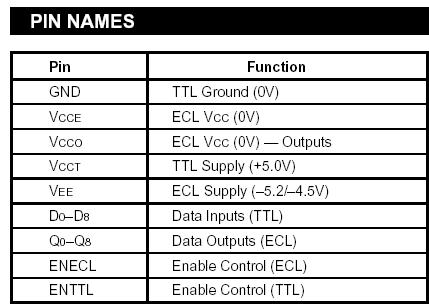

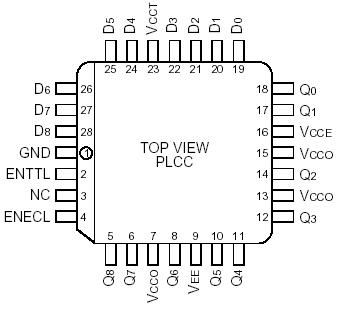

Pinout




Specifications

DC ELECTRICAL CHARACTERISTICS
Symbol	Parameter	TA= 0°C		TA=+25°C		TA= +85°C		Unit	Condition
		Min.	Max.	Min.	Max.	Min.	Max.
IEE	PowerSupplyCurrent, ECL 10H 100H	- -	125 122	- -	125 123	- -	125 132	mA	-
ICCH ICCL	Power Supply Current, TTL	- -	48 50	- -	48 50	- -	48 50	mA	-
AC ELECTRICAL CHARACTERISTICS
Symbol	Parameter	TA= 0°C		TA=+25°C		TA= +85°C		Unit	Condition
		Min.	Max.	Min.	Max.	Min.	Max.
tPLH tPHL	Propagation Delay to Output D Output Rise/Fall Time	1.4 1.8	3.0 3.7	1.5 1.9	3.2 3.9	1.7 2.0	3.5 4.1	ns	50Ωto 2.0V
tr tf	Output Rise/Fall Time 20%to80%, 80% to 20%	0.5	1.5	0.5	1.5	0.5	1.5	ns	50Ωto 2.0V

Description

  The SY10/SY100H600 are 9-bit, dual supply TTL-to-ECL translators. Devices in the Micrel-Synergy 9-bit translator series utilize the 28-lead PLCC for optimal power pinning,signal flow-through and electrical performance.

  The SY100H600 features both ECL and TTL logic enable controls for maximum flexibility.

  The SY100H600 version is compatible with MECL 10KH ECL logic levels. The 100H version is compatible with 100K levels.
