SY100H602

Features: ·9-bit ideal for byte-parity applications·Flow-through configuration·Extra TTL and ECL power/ground pins to minimize switching noise·Dual supply·3.5ns max. D to Q·PNP TTL inputs for low loading·Choice of ECL compatibility: MECL 10KH (10Hxxx) or 100K (100Hxxx)·Fully compatible with Motoro...

product image

SY100H602 Picture
See larger image
SeekIC No. : 004509963 Detail

SY100H602: Features: ·9-bit ideal for byte-parity applications·Flow-through configuration·Extra TTL and ECL power/ground pins to minimize switching noise·Dual supply·3.5ns max. D to Q·PNP TTL inputs for low lo...

SY100H602 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY100H602
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·9-bit ideal for byte-parity applications
·Flow-through configuration
·Extra TTL and ECL power/ground pins to minimize switching noise
·Dual supply
·3.5ns max. D to Q
·PNP TTL inputs for low loading
·Choice of ECL compatibility: MECL 10KH (10Hxxx) or 100K (100Hxxx)
·Fully compatible with Motorola MC10H/100H602
·Available in 28-pin PLCC package

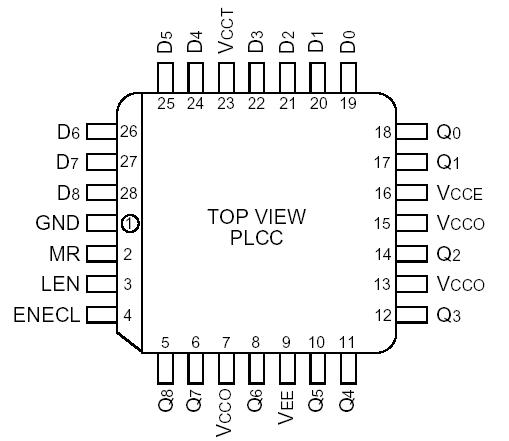

Pinout

Connection Diagram


Description

The SY10/SY100H602 are 9-bit, dual supply TTL-to-ECL translators with latches. Devices in the Micrel-Synergy 9-bit translator series utilize the 28-lead PLCC for optimal power pinning, signal flow-through and electrical performance.

The SY100H602 features D-type latches. Latching is controlled by Latch Enable (LEN), while the Master Reset input resets the latches. A post-latch logic enable is also provided (ENECL), allowing control of the output state without destroying latch data. All control inputs are ECL level.

The SY100H602 version is compatible with MECL 10KH ECL logic levels. The 100H version is compatible with 100K levels.
