Product Details

Description



Features:

`Max. propagation delay of 1050ps
`IEE min. of 60mA
`Extended supply voltage option: VEE = 4.2V to 5.5V
`Voltage and temperature compensation for improved noise immunity
`Internal 75KΩ input pull-down resistors
`40% faster than Fairchild 300K at lower power
`Function and pinout compatible with Fairchild F100K
`Available in 24-pin CERPACK and 28-pin PLCC packages


Pinout

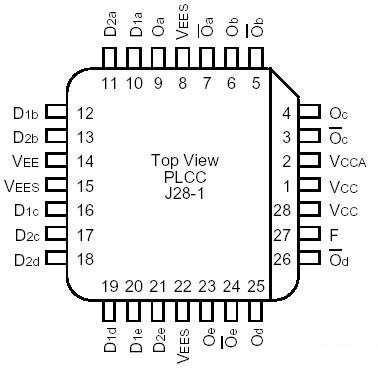

Connection Diagram


Description

The SY100S304 is an ultra-fast quint AND/NAND gate designed for use in high-performance ECL systems. This device also features a Function (F) output which is the wire- NOR of the AND gate outputs. The inputs on the device have 75KΩ pull-down resistors.
