SY100S314

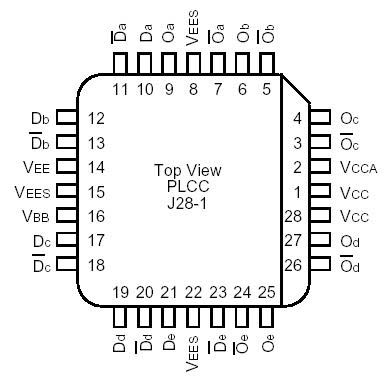

The SY100S314 offers five differential line receivers with emitter follower outputs, designed for use in highperformance ECL systems. For single-ended operation, the VBB reference voltage is available. In the single-ended mode, the apparent input threshold of the true inputs is 30mV higher than the threshold of the complementary inputs.

Common mode rejection of +1.0V is achieved through the use of active current sources. If both the true and complement inputs are at the same potential between VEE and VCC, then the complementary outputs of SY100S314 will take on a logic HIGH state. Unlike the other members of the Synergy 300K family, the inputs on this device do not have pulldown resistors.
