SY100S324

Features: `Max. propagation delay of 1.4ns`IEE min. of 70mA`Industry standard 100K ECL levels`Extended supply voltage option: VEE = 4.2V to 5.5V`Differential outputs`Voltage and temperature compensation for improved noise immunity`Internal 75KΩ input pull-down resistors`Twice as fast as Fair...

product image

SY100S324 Picture
See larger image
SeekIC No. : 004509984 Detail

SY100S324: Features: `Max. propagation delay of 1.4ns`IEE min. of 70mA`Industry standard 100K ECL levels`Extended supply voltage option: VEE = 4.2V to 5.5V`Differential outputs`Voltage and temperature compensa...

SY100S324 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY100S324
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Max. propagation delay of 1.4ns
`IEE min. of 70mA
`Industry standard 100K ECL levels
`Extended supply voltage option: VEE = 4.2V to 5.5V
`Differential outputs
`Voltage and temperature compensation for improved noise immunity
`Internal 75KΩ input pull-down resistors
`Twice as fast as Fairchild's 324
`Function and pinout compatible with Fairchild F100K
`Available in 24-pin CERPACK and 28-pin PLCC packages




Pinout

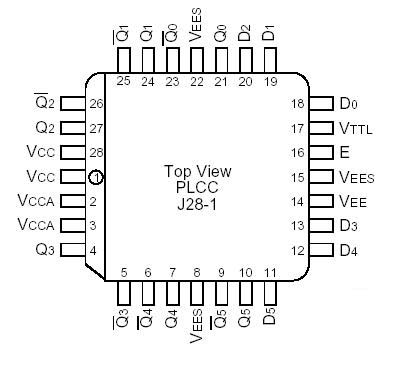

Connection Diagram




Description

The SY100S324 is a hex translator designed to convert TTL logic levels to 100K ECL levels. The inputs are TTL compatible with differential outputs that can either be used as an inverting/non-inverting translator or as differential line drivers. A common Enable (E), when LOW, holds all inverting outputs HIGH and holds all noninverting outputs LOW.

When used in the differential mode, due to its high common mode rejection, SY100S324's overcomes voltage gradients between the TTL and ECL ground systems. The VEE and VTTL power may be applied in either order.
