SY100S341

Features: `Max. shift frequency of 600MHz`Max. Clock to Q delay of 1200ps`IEE min. of 150mA`Industry standard 100K ECL levels`Extended supply voltage option: VEE = 4.2V to 5.5V`Voltage and temperature compensation for improved noise immunity`Internal 75KΩ input pull-down resistors`70% faster...

product image

SY100S341 Picture
See larger image
SeekIC No. : 004509989 Detail

SY100S341: Features: `Max. shift frequency of 600MHz`Max. Clock to Q delay of 1200ps`IEE min. of 150mA`Industry standard 100K ECL levels`Extended supply voltage option: VEE = 4.2V to 5.5V`Voltage and temperatu...

SY100S341 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY100S341
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Max. shift frequency of 600MHz
`Max. Clock to Q delay of 1200ps
`IEE min. of 150mA
`Industry standard 100K ECL levels
`Extended supply voltage option: VEE = 4.2V to 5.5V
`Voltage and temperature compensation for improved noise immunity
`Internal 75KΩ input pull-down resistors
`70% faster than Fairchild 300K at lower power
`Function and pinout compatible with Fairchild F100K
`Available in 24-pin CERPACK and 28-pin PLCC packages


Pinout

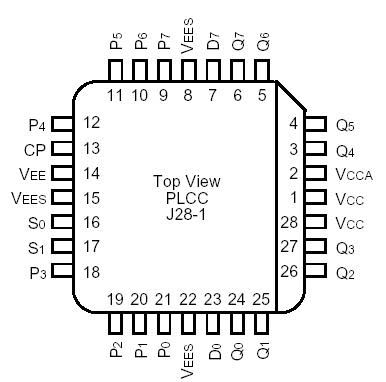

Connection Diagram


Description

The SY100S341 offer eight D-type, edge-triggered flipflops with both individual inputs for parallel operation as well as serial inputs for bidirectional shifting, and are designed for use in high-performance ECL systems. Data is clocked into the flip-flops on the rising edge of the clock.

The mode of operation is selected by two Select inputs (S0, S1) which determine if the SY100S341 performs a shift, hold or parallel entry function, as described in the Truth Table. The inputs on these devices have 75KΩ pull-down resistors.
