SY100S366

Features: Max. propagation delay of 1500psIEE min. of 120mAIndustry standard 100K ECL levelsExtended supply voltage option:VEE = 4.2V to 5.5VVoltage and temperature compensation for improvednoise immunityInternal 75KΩ input pull-down resistors120% faster than FairchildApproximately 40% lower...

product image

SY100S366 Picture
See larger image
SeekIC No. : 004509996 Detail

SY100S366: Features: Max. propagation delay of 1500psIEE min. of 120mAIndustry standard 100K ECL levelsExtended supply voltage option:VEE = 4.2V to 5.5VVoltage and temperature compensation for improvednoise im...

SY100S366 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY100S366
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Max. propagation delay of 1500ps
IEE min. of 120mA
Industry standard 100K ECL levels
Extended supply voltage option:
   VEE = 4.2V to 5.5V
 Voltage and temperature compensation for improvednoise immunity
Internal 75KΩ input pull-down resistors
120% faster than Fairchild
Approximately 40% lower power than Fairchild
Function and pinout compatible with Fairchild F100K
Available in 24-pin CERPACK and 28-pin PLCCpackages


Pinout

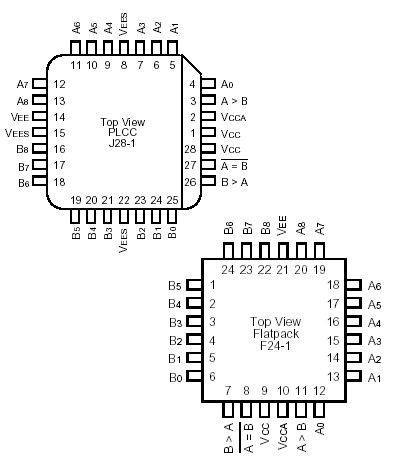

Connection Diagram


Description

The SY100S366 is an ultra-fast 9-bit magnitudecomparator designed for use in high-performance ECLsystems. The SY100S366 compares the arithmetic value of two9-bit words and indicates whether one word is greater thanor equal to the other. The inputs on the device have 75KΩpull-down resistors.
