SY100S371

Features:

Max. propagation delay of 1000ps
IEE min. of 68mA
Industry standard 100K ECL levels
Extended supply voltage option:
VEE = 4.2V to 5.5V
Voltage and temperature compensation for improved
noise immunity
Internal 75KΩ input pull-down resistors
40% faster than Fairchild
40% lower power than Fairchild
Function and pinout compatible with Fairchild F100K
Available in 24-pin CERPACK and 28-pin PLCC
packages

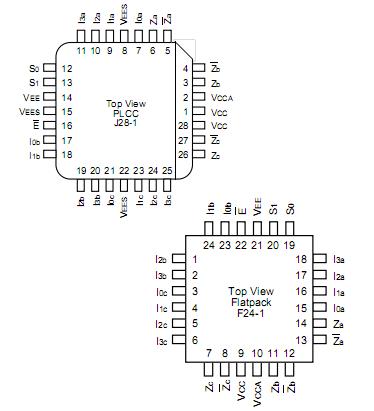

Pinout






Description

The SY100S371 is an ultra-fast triple 4-input multiplexer with true and complementary outputs designed for use in high-performance ECL systems. The multiplexer is controlled by common select inputs S0 and S1. A logic HIGH on the Enable (E) control input takes the outputs to a logic LOW. The inputs on the SY100S371 has 75KΩ pulldown resistors.
