SY10E116

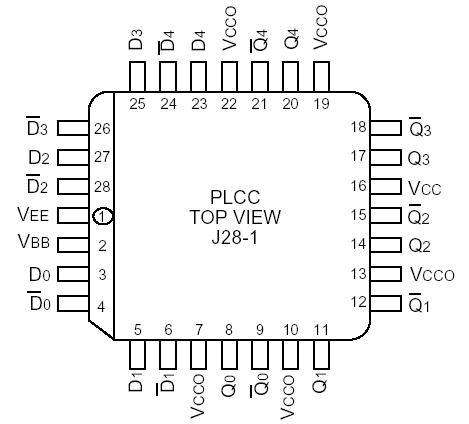

The SY10E116/100E116 are quint differential line receivers designed for use in new, high-performance ECL systems. These devices have emitter-follower outputs and an internally generated reference supply (VBB) for singleended reception.

Active current sources combined with Micrel-Synergy's ASSET™ technology provide the receivers with excellent common mode noise rejection.

The receiver design of SY10E116 features clamp circuitry to cause a defined output state if both the inverting and non-inverting inputs are left open; in this case the Q output goes LOW, while the Q output goes HIGH.

If both inverting and non-inverting inputs of SY10E116 are at equal potential, the receiver does not go to a defined state, but rather shares current in normal differential amplifier fashion, producing output voltage levels midway between HIGH and LOW.

The VBB output is intended for use as a reference voltage for single-ended reception of ECL signals to that device only. When using VBB for this purpose, SY10E116 is recommended that VBB is decoupled to VCC via a 0.01 µF capacitor.

For higher bandwidth, please refer to the SY10E116/100E416 device.
