SY10E150

Features: `700ps max. propagation delay`Extended 100E VEE range of 4.2V to 5.5V`Differential outputs`Fully compatible with industry standard 10KH, 100K ECL levels`Internal 75KΩ input pulldown resistors`Fully compatible with Motorola MC10E/100E150`Available in 28-pin PLCC packagePinoutDescrip...

product image

SY10E150 Picture
See larger image
SeekIC No. : 004510029 Detail

SY10E150: Features: `700ps max. propagation delay`Extended 100E VEE range of 4.2V to 5.5V`Differential outputs`Fully compatible with industry standard 10KH, 100K ECL levels`Internal 75KΩ input pulldown ...

SY10E150 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY10E150
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`700ps max. propagation delay
`Extended 100E VEE range of 4.2V to 5.5V
`Differential outputs
`Fully compatible with industry standard 10KH, 100K ECL levels
`Internal 75KΩ input pulldown resistors
`Fully compatible with Motorola MC10E/100E150
`Available in 28-pin PLCC package


Pinout

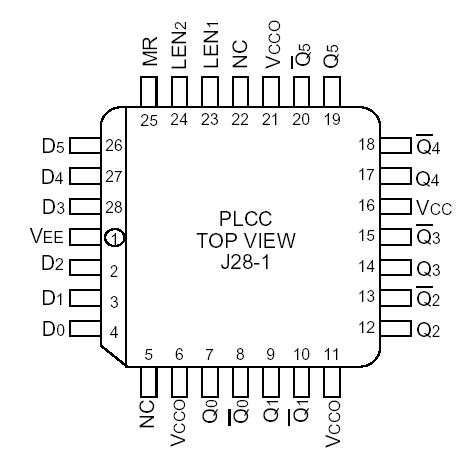

Connection Diagram


Description

The SY10E150/100E150 are 6-bit D latches with differential outputs designed for use in new, high- performance ECL systems. When both Latch Enables (LEN1, LEN2) are at a logic LOW, the latch is in the transparent mode and input data propagates through to the output. A logic HIGH on either LEN1 or LEN2 (or both) latches the input data. The Master Reset (MR) overrides all other signals to set the Q outputs to a logic LOW.
