SY10E171

Features: `725ps max. D to output`Extended 100E VEE range of 4.2V to 5.5V`Differential outputs`Split select architecture`Fully compatible with industry standard 10KH, 100K ECL levels`Internal 75KΩ input pulldown resistors`Fully compatible with Motorola MC10E/100E171`Available in 28-pin PLCC ...

product image

SY10E171 Picture
See larger image
SeekIC No. : 004510041 Detail

SY10E171: Features: `725ps max. D to output`Extended 100E VEE range of 4.2V to 5.5V`Differential outputs`Split select architecture`Fully compatible with industry standard 10KH, 100K ECL levels`Internal 75K...

SY10E171 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY10E171
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`725ps max. D to output
`Extended 100E VEE range of 4.2V to 5.5V
`Differential outputs
`Split select architecture
`Fully compatible with industry standard 10KH, 100K ECL levels
`Internal 75KΩ input pulldown resistors
`Fully compatible with Motorola MC10E/100E171
`Available in 28-pin PLCC package


Pinout

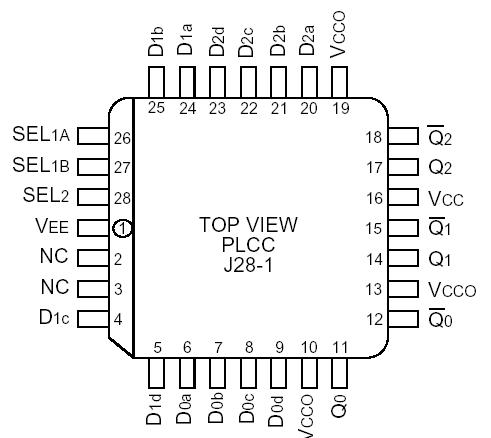

Connection Diagram


Description

The SY10E171/100E171 offer three 4:1 multiplexers with differential outputs, designed for use in new, highperformance ECL systems. The leading 4-bit multiplexer operation is organized pairwise, with each pair being a 2-bit multiplexer. Separate select (SEL1A, SEL1B) controls are provided within each pair. The SEL1A and SEL1B signals control the leading multiplexers, while the SEL2 signal controls the output multiplexer. The three select signals of SY10E171 can be used to determine which of the four data inputs will be propagated to the corresponding outputs.
