SY10E256

Features: ` 950ps max. data to output` Extended 100E VEE range of 4.2V to 5.5V` 850ps max. latch enable to output` Separate select controls` Differential outputs` Fully compatible with industry standard 10KH, 100K ECL levels` Internal 75KΩ input pulldown resistors` Fully compatible with Moto...

product image

SY10E256 Picture
See larger image
SeekIC No. : 004510048 Detail

SY10E256: Features: ` 950ps max. data to output` Extended 100E VEE range of 4.2V to 5.5V` 850ps max. latch enable to output` Separate select controls` Differential outputs` Fully compatible with industry stan...

SY10E256 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY10E256
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 950ps max. data to output
` Extended 100E VEE range of 4.2V to 5.5V
` 850ps max. latch enable to output
` Separate select controls
` Differential outputs
` Fully compatible with industry standard 10KH, 100K ECL levels
` Internal 75KΩ input pulldown resistors
` Fully compatible with Motorola MC10E/100E256
` Available in 28-pin PLCC package

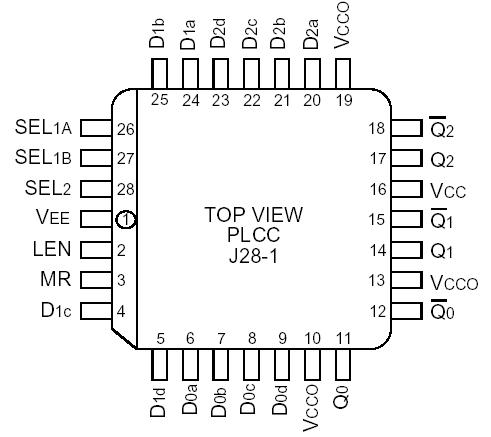

Pinout

Connection Diagram


Description

The SY10E256/100E256 offer three 4:1 multiplexers followed by latches with differential outputs designed for use in new, high-performance ECL systems. Separate Select controls are provided for the leading 2:1 mux pairs (see block diagram).

When the Latch Enable (LEN) is at a logic LOW, the latch is transparent and output data is controlled by the multiplexer select controls. A logic HIGH on LEN latches the outputs of SY10E256. The Master Reset (MR) overrides all other controls to set the Q outputs LOW.
