SY10E404

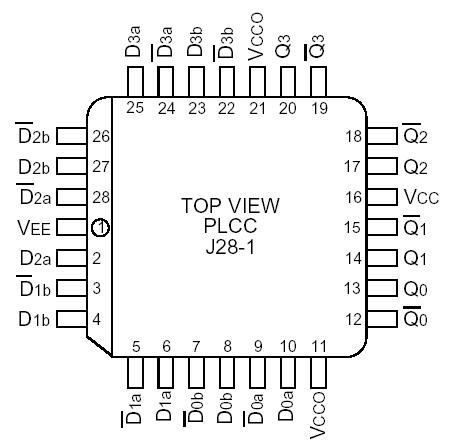

The SY10E404/100E404 are 4-bit differential AND/NAND devices. The differential operation of these devices make SY10E404 ideal for pulse shaping applications where duty cycle skew is critical. Special design techniques were incorporated to minimize the skew between the upper and lower level gate inputs.

Because a negative 2-input NAND function of SY10E404 is equivalent to a 2-input OR function, the differential inputs and outputs of the devices also allow for their use as fully differential 2-input OR/NOR functions.

The output RISE/FALL times of the SY10E404 is significantly faster than most other standard ECLinPS devices, resulting in an increased bandwidth.

The differential inputs of SY10E404 have clamp structures which will force the Q output of a gate in an open input condition to go to a LOW state. Thus, inputs of unused gates can be left open and will not affect the operation of the rest of the device.
