SY10E452

Features:

`Differential D, CLK and Q
`Extended 100E V_EE range of 4.2V to 5.5V
`VBB output for single-ended use
`1100MHz min. toggle frequency
`Asynchronous Master Reset
`Fully compatible with Motorola MC10E/100E452
`Available in 28-pin PLCC package

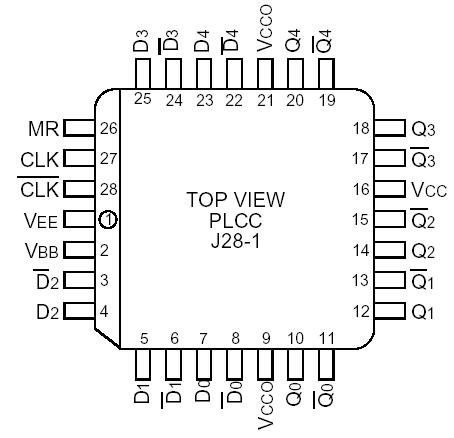

Pinout




Description

The SY10E452/100E452 are 5-bit differential registers with differential data (inputs and outputs) and clock. The registers are triggered by a positive transition of the positive clock (CLK) input. A high on the Master Reset (MR) asynchronously resets all registers so that the Q outputs go LOW.

The differential input structures are clamped so that the inputs of unused registers can be left open without upsetting the bias network of the SY10E452. The clamping action will assert the /D and the /CLK sides of the inputs. Because of the edge-triggered flip-flop nature of the devices, simultaneously opening both the clock and data inputs will result in an output which reaches an unidentified but valid state.

The fully differential design of the devices makes SY10E452 ideal for very high frequency applications where a registered data path is necessary.
