Product Details

Description



Features:

 3.3V and 5V power supply options
Bandwidth 3dB >2.5GHz
Internal 75k input pulldown resistor
Faster version of SY10EL16V
10K ECL compatible I/O
Improved output waveform characteristics
Available in 8-pin (3mm) MSOP and SOIC packages


Pinout

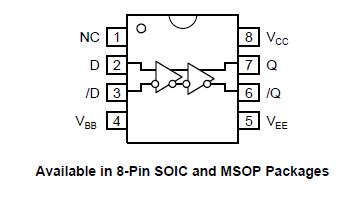

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VEE
 Power Supply Voltage (VCC = 0)
6.0 to 0
Vdc
VCC
 Power Supply Voltage (VEE = 0)
+6.0 to 0
Vdc
VI
 Input Voltage (VCC = 0V, VI not more negative than VEE)
6.0 to 0
Vdc
Input Voltage (VEE = 0V, VI not more negative than VCC)
+6.0 to 0
Vdc
IOUT
 Output Current Continuous
50
mA
Surge
100
IBB
 VBB Sink/Source Current(2) ±0.5
mA
TA
 Operating Temperature Range 40 to +85
°C
Tstore Storage Temperature Range 65 to +150
°C
NOTE:
1. Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded. This is a stress rating only and functional operation is not implied
at conditions other than those detailed in the operational sections of this data sheet. Exposure to ABSOLUTE MAXIMUM RATlNG conditions for extended periods may affect device reliability.


Description

The SY10EP16V is a high-speed differential receiver. The device is functionally equivalent to the EL16V devices, with higher performance capabilities. With output transition times significantly faster than the EL16V, the SY10EP16V is ideally suited for interfacing with highfrequency sources.

The SY10EP16V provides a VBB output for either single-ended use or as a DC bias for AC coupling to the device. The VBB pin should be used only as a bias for the SY10EP16V as its current sink/source capability is limited. Whenever used, the VBB pin should be bypassed to ground via a 0.01F capacitor.

Under open input conditions (pulled to VEE), internal input clamps will force the Q output LOW.
