Product Details

Description

Features:

· 3.3V and 5V power supply options
· 300ps typical propagation delay
· Differential LVPECL output
· ICC Max 20mA
· PNP LVTTL input for minimal loading
· Q output will default HIGH with inputs open
· High bandwidth to 800MHz typical
· Available in 8-pin MSOP and SOIC package

Pinout

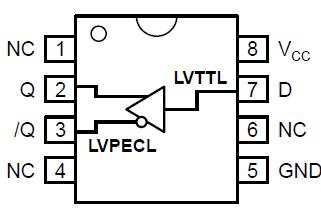

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
VCC	Power Supply Voltage	0.5 to +7.0	V
VI	TTL Input Voltage	0.5 to VCC	V
II	TTL Input Current	30 to +5.0	mA
IO	PECL Output Current - Continuous - Surge	50 100	mA
Tstore	Storage Temperature	-65 to +150
TA	Operating Temperature	40 to +85

Description

The SY10EPT20V/100EPT20V is a TTL/CMOS to differential PECL translator. Capable of running from a 3.3 or 5V supply, the part can be used in either LVTTL/LVCMOS/ LVPECL or TTL/CMOS/PECL systems.

The SY10EPT20V only requires a single positive supply of 3.3V or 5V - no negative supply is required.

The tiny 8-pin MSOP package and the low skew, dual gate design of the EPT20V makes SY10EPT20V ideal for those applications where space, performance, and low power are at a premium.
