Data Rate: -
Number of Outputs/Channel: 1
Logic Function: Translator
Operating Temperature: -40°C ~ 85°C
Number of Bits: 1
Number of Channels: 1
Packaging: Tube
Differential - Input:Output: No/Yes
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Output Type: LVPECL
Manufacturer: Micrel Inc
Propagation Delay (Max): 0.6ns
Voltage - Supply: 3.3V, 5V
Series: 10EPT
Input Type: LVCMOS, LVTTL
Features: · 3.3V and 5V power supply options
· 300ps typical propagation delay
· Differential LVPECL output
· ICC Max 20mA
· PNP LVTTL input for minimal loading
· Q output will default HIGH with inputs open
· High bandwidth to 800MHz typical

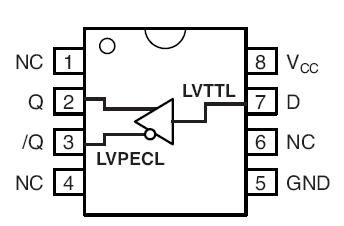

· Available in 8-pin MSOP and SOIC packagePinout
Specifications
| Symbol |
Paramter |
Value |
Unit |
| VCC |
Power Supply Voltage |
0.5 to +7.0 |
V |
| VIN |
TTL Input Voltage |
0.5 to VCC |
V |
| IIN |
TTL Input Current |
30 to +5.0 |
mA |
| IOUT |
PECL Output Current
Continuous
Surge |
50
100 |
mA |
| TLEAD |
Lead Temperature
(Soldering. 20sec.) |
+260 |
°C |
| Tstore |
Storage Temperature |
65 to +150 |
°C |
| TA |
Operating Temperature |
40 to +85 |
°C |
Note 1. Permanent device damage may occur if absolute maximum
ratings are exceeded. This is a stress rating only and functional
operation is not implied at conditions other than those detailed
in the operational sections of this data sheet. Exposure to
absolute maximum ratlng conditions for extended periods may
affect device reliability.DescriptionThe SY10EPT20VZC/100EPT20V is a TTL/CMOS to differential PECL translator. Capable of running from a 3.3 or 5V supply, the part can be used in either LVTTL/LVCMOS/ LVPECL or TTL/CMOS/PECL systems.
The SY10EPT20VZC only requires a single positive supply of 3.3V or 5V - no negative supply is required.
The tiny 8-pin MSOP package and the low skew, dual gate design of the EPT20V makes SY10EPT20VZC ideal for those applications where space, performance, and low power are at a premium.
SY10EPT20VZC Data Sheet
