SY3517(B)

Features: • Yellow colored diffusion transparency lens type• 3mm(T-1) all plastic mold type• Low power consumptionPinoutSpecifications Characteristic Symbol Ratings Unit Power Dissipation PD 85 mW Forward Current IF 30 mA *1Peak Forward Current IFP 50 mA...

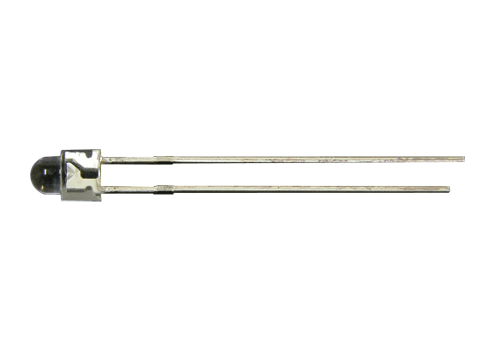

product image

SY3517(B) Picture
See larger image
SeekIC No. : 004510141 Detail

SY3517(B): Features: • Yellow colored diffusion transparency lens type• 3mm(T-1) all plastic mold type• Low power consumptionPinoutSpecifications Characteristic Symbol Ratings Unit ...

SY3517(B) Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY3517(B)
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Yellow colored diffusion transparency lens type
• 3mm(T-1) all plastic mold type
• Low power consumption




Pinout






Specifications

Characteristic Symbol Ratings Unit
Power Dissipation PD 85 mW
Forward Current IF 30 mA
*1Peak Forward Current IFP 50 mA
Reverse Voltage VR 4 V
Operating Temperature Topr -25∼85 °C
Storage Temperature Tstg -300∼100 °C
*2Soldering Temperature
(Reflow soldering)		 Tsol 260°C for5 seconds

*1.Duty ratio = 1/16, Pulse width = 0.1ms
*2.Keep the distance more than 2.0mm from PCB to the bottom of LED package






Description

The SY3517(B) is used as a indigator for the Electric home appliance. - Refrigerator, Washing machine, Air conditioner & Humidifier, Audio, VTR, Television, Computer, Vending machine, etcs. The SY3517(B) has been also used as a light source at the lighting fixtures.
