SY58028UMG

Independent Circuits: 1
Voltage Supply Source: Single Supply
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Type: Multiplexer
Current - Output High, Low: -
Packaging: Tube
Circuit: 1 x 4:1
Manufacturer: Micrel Inc
Voltage - Supply: 3 V ~ 3.6 V
Package / Case: 32-VFQFN Exposed Pad, 32-MLF?
Supplier Device Package: 32-MLF? (5x5)
Series: SY58


Features:

` Selects 1 of 4 differential inputs
` Provides two copies of the selected input
` Guaranteed AC performance over temperature and voltage:
• DC-to- > 10.7Gbps data rate throughput
• < 350ps IN-to-Out tpd
• < 60ps tr / tf times
` Ultra low-jitter design:
• < 10psPP total jitter (clock)
• < 1psRMS random jitter
• < 10psPP deterministic jitter
• < 0.7psRMS crosstalk-induced jitter
` Unique patended input design minimizes crosstalk
` Accepts an input signal as low as 100mV
` Unique patended input termination and VT pin
  accepts DC- and AC-coupled inputs (CML, LVPECL, LVDS)
` Internal 50 output source termination
` 400mV CML output swing (RL = 50)
` Power supply 2.5V ±5% or 3.3V ±10%
` 40°C to +85°C temperature range
` Available in 32-pin (5mm * 5mm) MLF® package


Application

· Redundant clock and/or data distribution
· All SONET/SDH clock/data distribution
· Loopback
· All Fibre Channel distribution
· All Gigabit Ethernet clock and/or data distributi

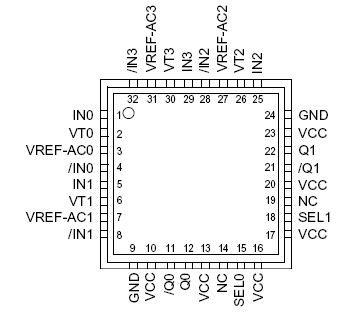

Pinout




Specifications

Power Supply Voltage (V_CC ) ...................... 0.5V to +4.0V
Input Voltage (V_IN) ........................................ 0.5V to VCC
CML Output Voltage (V_OUT) ........... V_CC1.0V to V_CC+0.5V
Termination Current(3)
Source or sink current on VT pin ............................ ±100mA
Input Current
Source or sink current on IN, /IN pin ........................ ±50mA
Lead Temperature (soldering, 20 sec.) ..................... 260°C
Storage Temperature Range (T_S ) ........... 65°C to +150°C


Description

The SY58028U is a 2.5V/3.3V precision, high-speed, 4:1 differential CML multiplexer capable of handling clocks up to 7GHz and data streams up to 10.7Gbps. In addition, a 1:2 fanout buffer provides two copies of the selected inputs. The differential input includes Micrel's unique, 3-pin input termination architecture that allows customers to interface to any differential signal (AC- or DC-coupled) as small as 100mV without any level shifting or termination resistor networks in the signal path. The result is a clean, stub-free, low-jitter interface solution. The outputs are 50 source terminated CML, with extremely fast rise/fall times guaranteed to be less than 60ps.

The SY58028U operates from a 2.5V ±5% supply or a 3.3V ±10% supply and is guaranteed over the full industrial temperature range of 40°C to +85°C. For applications that require LVPECL outputs, consider the SY58029U or SY58030U Multiplexers. The SY58028U is part of Micrel's high-speed, Precision Edge® product line.All support documentation can be found on Micrel's web site at www.micrel.com.

Parameters:

Technical/Catalog Information	SY58028UMG
Vendor	Micrel Inc
Category	Integrated Circuits (ICs)
Circuit	1 x 4:1
Independent Circuits	1
Mounting Type	Surface Mount
Current - Output High, Low	-
Package / Case	32-MLF?
Packaging	Tube
Type	Multiplexer
Voltage Supply Source	Single Supply
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	3 V ~ 3.6 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SY58028UMG SY58028UMG 576 1385 ND 5761385ND 576-1385
