SY89429A

Features: Improved jitter performance over SY89429 25MHz to 400MHz differential PECL outputs ±25ps peak-to-peak output jitter Minimal frequency over-shoot Synthesized architecture Serial 3 wire interface Parallel interface for power-on Internal quartz reference oscillator driven by quartz crystal ...

product image

SY89429A Picture
See larger image
SeekIC No. : 004510337 Detail

SY89429A: Features: Improved jitter performance over SY89429 25MHz to 400MHz differential PECL outputs ±25ps peak-to-peak output jitter Minimal frequency over-shoot Synthesized architecture Serial 3 wire inte...

SY89429A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY89429A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Improved jitter performance over SY89429
25MHz to 400MHz differential PECL outputs
±25ps peak-to-peak output jitter
Minimal frequency over-shoot
Synthesized architecture
Serial 3 wire interface
Parallel interface for power-on
Internal quartz reference oscillator driven by quartz crystal or PECL source
PECL output can operate with either +3.3V or +5V VCC_OUT power supply
External loop filter optimizes performance/cost
Applications note (AN-06) for ease of design-ins
Available in PLCC and SOIC 28-pin packages




Application

Workstations
Advanced communications
High end consumer
High-performance computing
RISC CPU clock
Graphics pixel clock
Test equipment
Other high-performance processor-based applications




Pinout

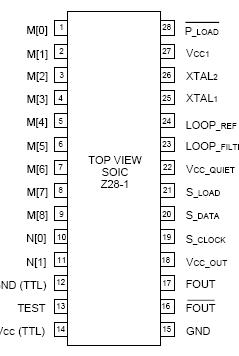

Connection Diagram




Specifications

Symbol Parameter Value Unit
VCC Power Supply Voltage 0.5 to +7.0 V
VI Input Voltage 0.5 to VCC V
IOUT ECL Output Current
- Continuous
- Surge		 50
100		 mA
Tstore Storage Temperature 65 to +150 °C
TA Operating Temperature 40 to +85 °C





Description

The SY89429A is a general purpose, synthesized clock source targeting applications that require both serial and parallel interfaces. Its internal VCO will operate over a range of frequencies from 400MHz to 800MHz. The differential PECL output of SY89429A can be configured to be the VCO frequency divided by 2, 4, 8 or 16. With the output configured to divide the VCO frequency by 2, and with a 16MHz external quartz crystal used to provide the reference frequency, the output frequency can be specified in 1MHz steps.
