SY89429VJCTR

Features: · 3.3V and 5V power supply options· 25MHz to 400MHz differential PECL outputs· 50ps peak-to-peak output jitter· Minimal frequency over-shoot· Synthesized architecture· Serial 3-wire interface· Parallel interface for power-on· Internal quartz reference oscillator driven by quartz ...

product image

SY89429VJCTR Picture
See larger image
SeekIC No. : 004510339 Detail

SY89429VJCTR: Features: · 3.3V and 5V power supply options· 25MHz to 400MHz differential PECL outputs· 50ps peak-to-peak output jitter· Minimal frequency over-shoot· Synthesized architecture· Serial 3-wire ...

SY89429VJCTR Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY89429VJCTR
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 3.3V and 5V power supply options
· 25MHz to 400MHz differential PECL outputs
· 50ps peak-to-peak output jitter
· Minimal frequency over-shoot
· Synthesized architecture
· Serial 3-wire interface
· Parallel interface for power-on
· Internal quartz reference oscillator driven by quartz crystal
· Application Note (AN-07) for ease of design-ins
· Available in 28-pin PLCC and SOIC packages


Application

· Workstations
· Advanced communications
· High end consumer
· High-performance computing
· RISC CPU clock
· Graphics pixel clock
· Test equipment
· Other high-performance processor-based applications


Pinout

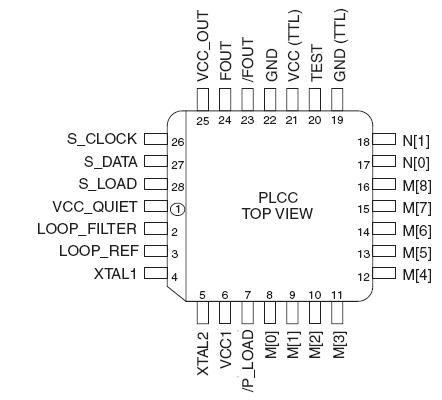

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Power Supply Voltage 0.5 to +7.0 V
VI Input Voltage 0.5 to +7.0 V
IOUT Output Source Continuous
Surge		 50
100		 mA
TLEAD Lead Temperature (soldering 20sec.) +260 °C
Tstore Storage Temperature 65 to +150 °C
TA Operating Temperature 0 to +7 °C
NOTE:
1. Permanent device damage may occur if absolute maximum ratings are exceeded. This is a stress rating only and functional operation is not implied at conditions
other than those detailed in the operational sections of this data sheet. Exposure to absolute maximum ratlng conditions for extended periods may affect device
reliabilit


Description

The SY89429V is a general purpose, synthesized clock source targeting applications that require both serial and parallel interfaces. Its internal VCO will operate over a range of frequencies from 400MHz to 800MHz. The differential PECL output of SY89429V can be configured to be the VCO frequency divided by 2, 4, 8 or 16. With the output configured to divide the VCO frequency by 2, and with a 16MHz external quartz crystal used to provide the referencefrequency, the output frequency can be specified in 1MHz steps.Data sheets and support documentation can be found on Micrel's web site at: www.micrel.com.
