Product Details

Description

Features:

TrenchFET^®Power MOSFET
100% R_gTested

Pinout

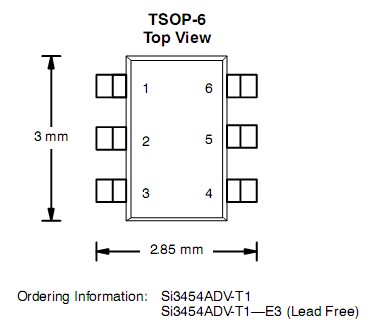

Connection Diagram

Specifications

Parameter		Symbol	5 secs	Steady State	Unit
Drain-Source Voltage		V_DS	30		V
Gate-Source Voltage		V_GS	±20
Continuous Drain Current(TJ= 150 )^a	T_A= 25	I_D	4.5	3.4	A
	T_A= 70		3.6	2.7
Pulsed Drain Current (10s Pulse Width)		IDM	20
Continuous Source Current (Diode Conduction)^a		I_S	1.7	1.0
Maximum Power Dissipationa	T_A= 25	P_D	2.0	1.14	W
	T_A= 70		1.3	0.73
Operating Junction and Storage Temperature Range		T_J, T_stg	−55 to 150
